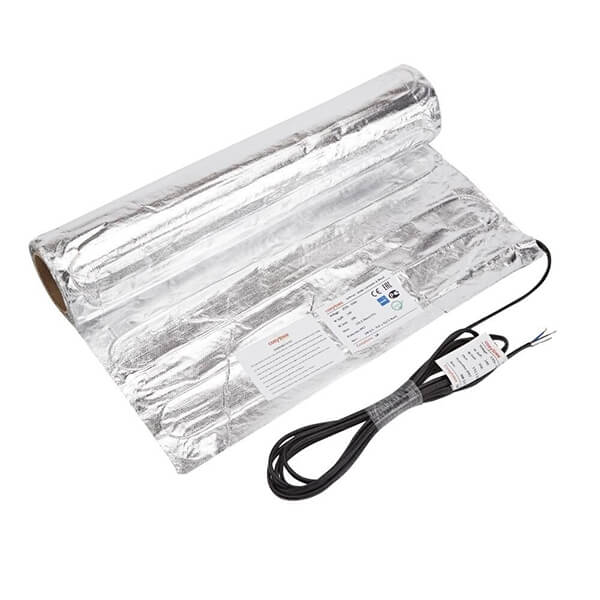

Cosytoes Softmat Underfloor Heating - 2.5m Sq (7468) Silver

Cosytoes Softmat Underfloor Heating - 2.5m Sq

Softmat has been designed for use under laminate and manufactured hardwood flooring. This system has a foil heat exchanger for even distribution of heat through the floor surface.

When using Cosytoes® Softmat it is important to also install Softmat Underlay onto the floor prior to laying Softmat. Softmat Underlay is a 6mm thick Depron Foam board that is laid out and closely fitted over the entire floor area. The thin heating cables bed into the underlay with the foil heat exchanger uppermost. The flooring is then installed.

Features:

• Best system for use under wooden floors on the market
• Easy to install
• Use a timerstat for efficient heating control
• Surpasses international safety standards
• Tough rugged construction
• Heating cables only 1.5mm thick
• Overall depth of system 6.5mm including 6mm Depron Board

Technical Specification:

• Cable Output: 6.25w/m
• Voltage: 230V
• Outer Insulation: Teflon
• Inner Insulation: Teflon
• Wire Thickness: 1.5mm
• Protection Class: IPX7
• Connections: One connection 4m long
• Cable: 2x Single Element

For User Instructions - Please Click Here

Need Peace of Mind? This product comes supplied with a Lifetime Manufacturer's Guarantee
