Specification Sheet

Aqualisa Dream Concealed Thermostatic Mixer Single
Outlet With Wall Fixed Head - Round (21456)
Length2mm (with knobs 60.5mm)
Width130mm
Height200mm
BrandAqualisa
Valve TypeDCV
Shower TypeMixer
Outlet Connection15mm Compression
Max Pressure5 bar
Min Pressure0.2 bar
Water Entry InletHot left, cold right
Product Attributes

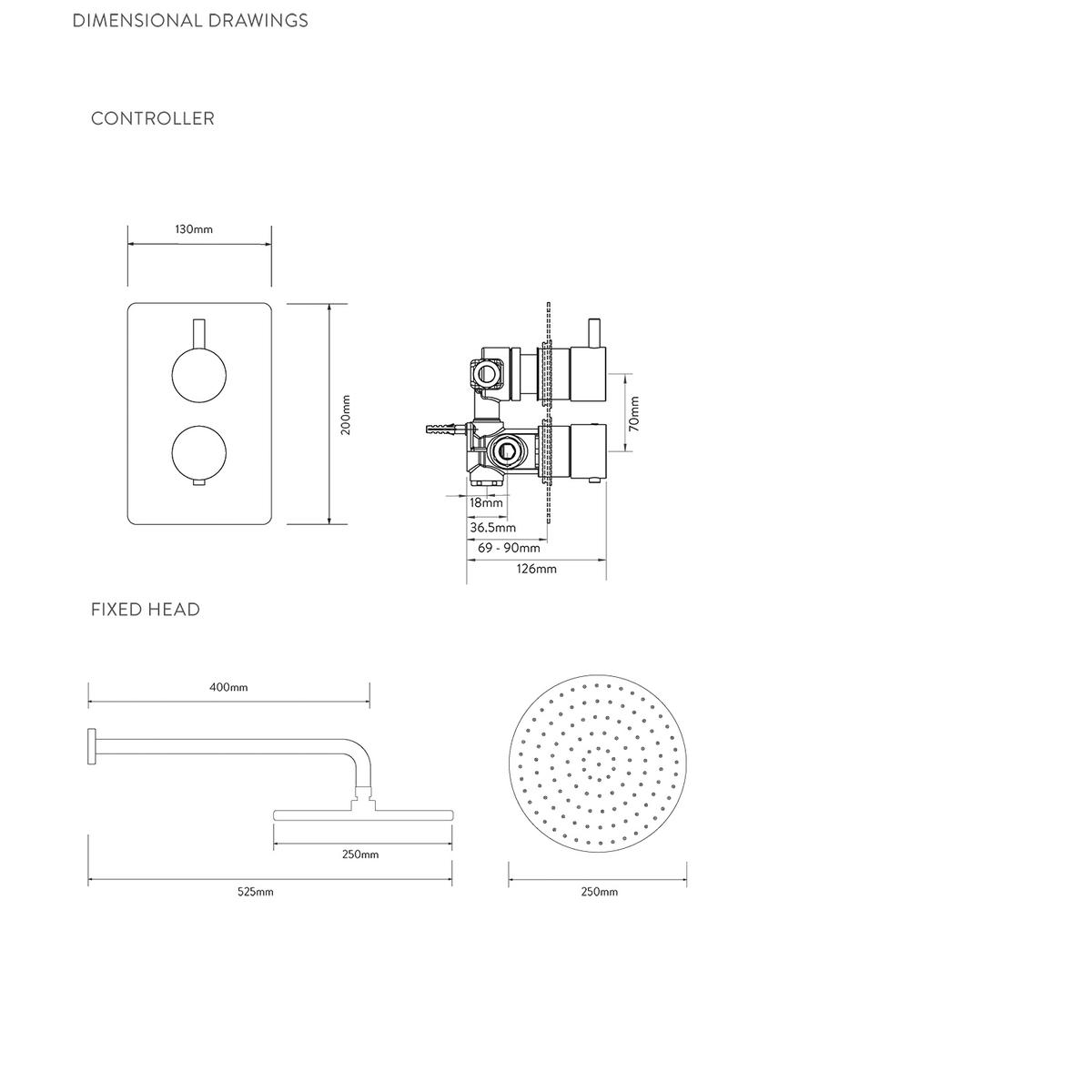

Technical Drawing

Aqualisa Dream Concealed Thermostatic Mixer Single
Outlet With Wall Fixed Head - Round (21456)
