Specification Sheet

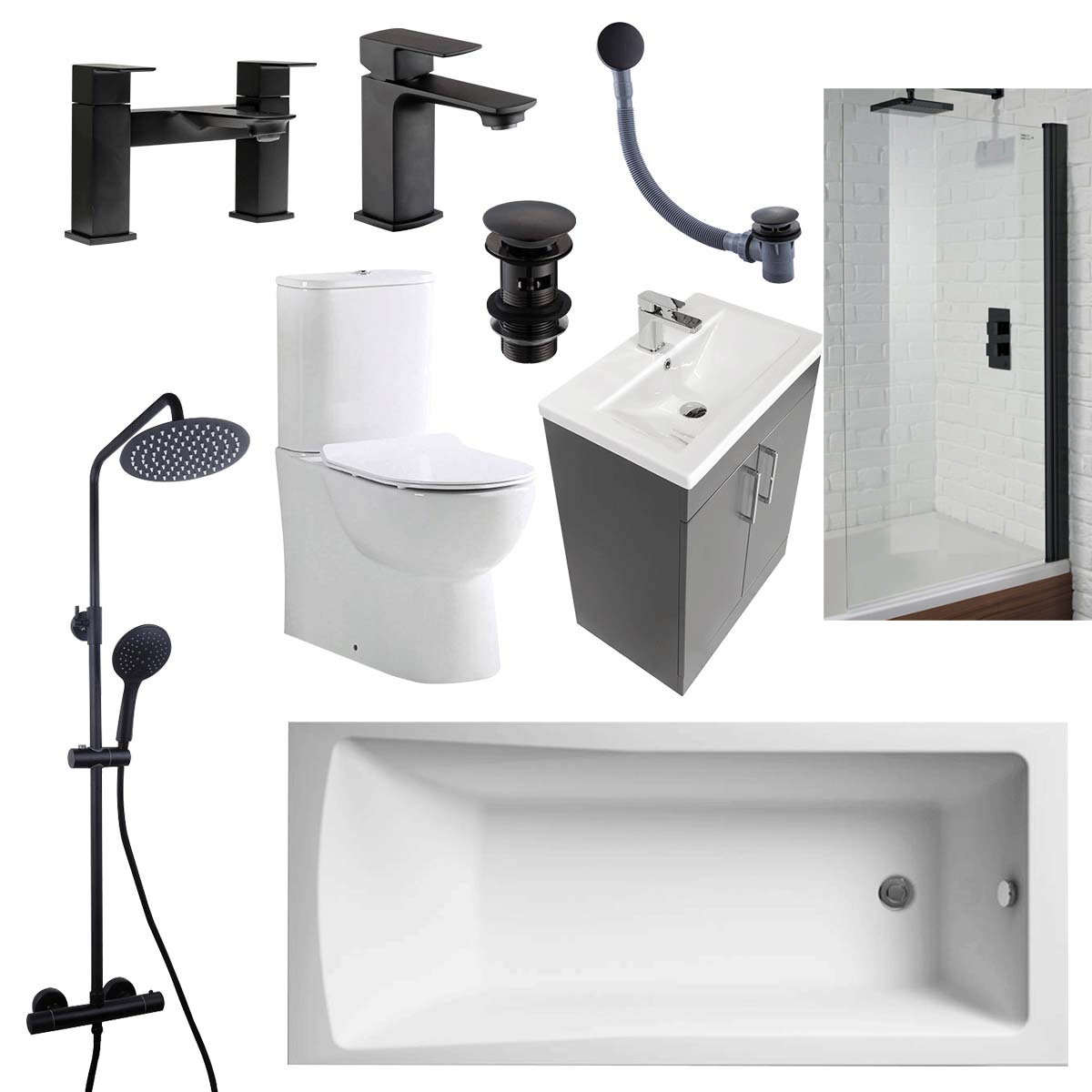

Austin Matt Anthracite Shower Bath Suite - Black
(20568)
Bath Width700
Bath Length1700mm
Toilet Height830mm
Toilet Width365mm
Toilet Depth615mm
Furniture Depth384mm
Furniture Width590mm
Furniture Height800mm
Tap TypeFiller
Product Attributes

Specification Sheet

Linton 1700 x 700mm Single Ended Bath (20528)
Length1700
Width700
ColourWhite
BrandNuie
Bath Width700
Bath Length1700mm
Bath TypeSingle Ended
Product Attributes

Specification Sheet

Nuie Square Framed Bath Screen - Black (11542)
Width785mm
BrandNuie
Enclosure ShapeSquare
Framed?Framed
Shower Enclosure Height1435mm
Shower Enclosure Max Width785mm
Shower Enclosure Min Width770mm
Shower Enclosure TypeWalk-In
Easy Clean GlassNo
Glass TypeClear
Glass Thickness6mm Glass
HandleNone
MaterialAluminium & Glass
ColourBlack
Product Attributes

Technical Drawing

Nuie Square Framed Bath Screen - Black (11542)

Specification Sheet

Eliseo Ricci Vesu Bath Filler - Black
ColourBlack
BrandEliseo Ricci
Tap Depth154mm
Tap Height149mm
Tap Width180mm
Tap StyleModern
Tap Holes2 Tap Holes
Tap TypeFiller
WRAS ApprovedYes
Swivel SpoutNo
FinishBlack
Max Pressure2.0 bar
Min Pressure0.5 bar
Waste SuppliedNo
MaterialBrass
Product Attributes

Technical Drawing

Eliseo Ricci Vesu Bath Filler - Black

Specification Sheet

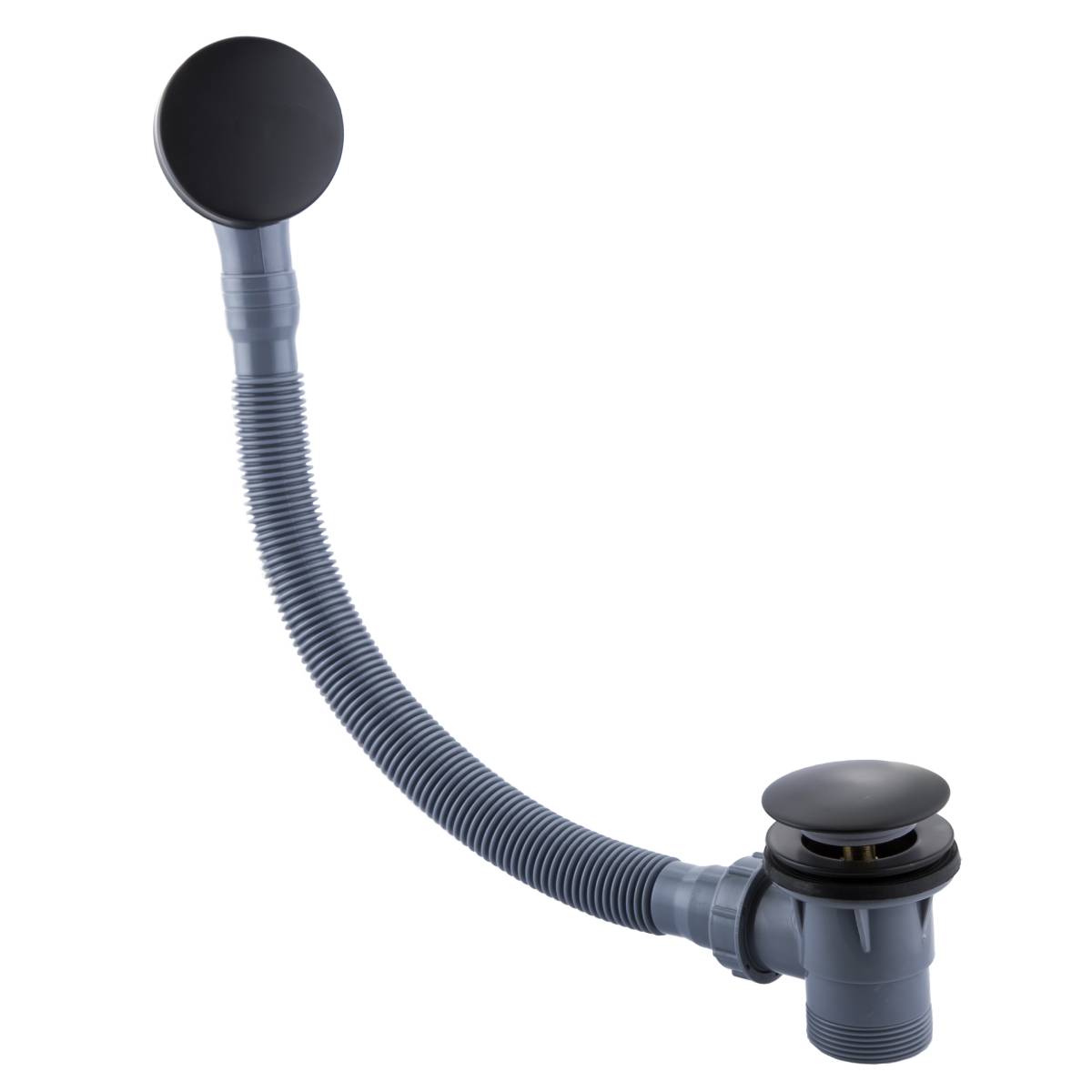

Eliseo Ricci Press Top Bath Waste & Overflow - Black
(11856)
BrandEliseo Ricci
ColourBlack
Height530mm
Width70mm
Length84mm
MaterialBrass
Product Attributes

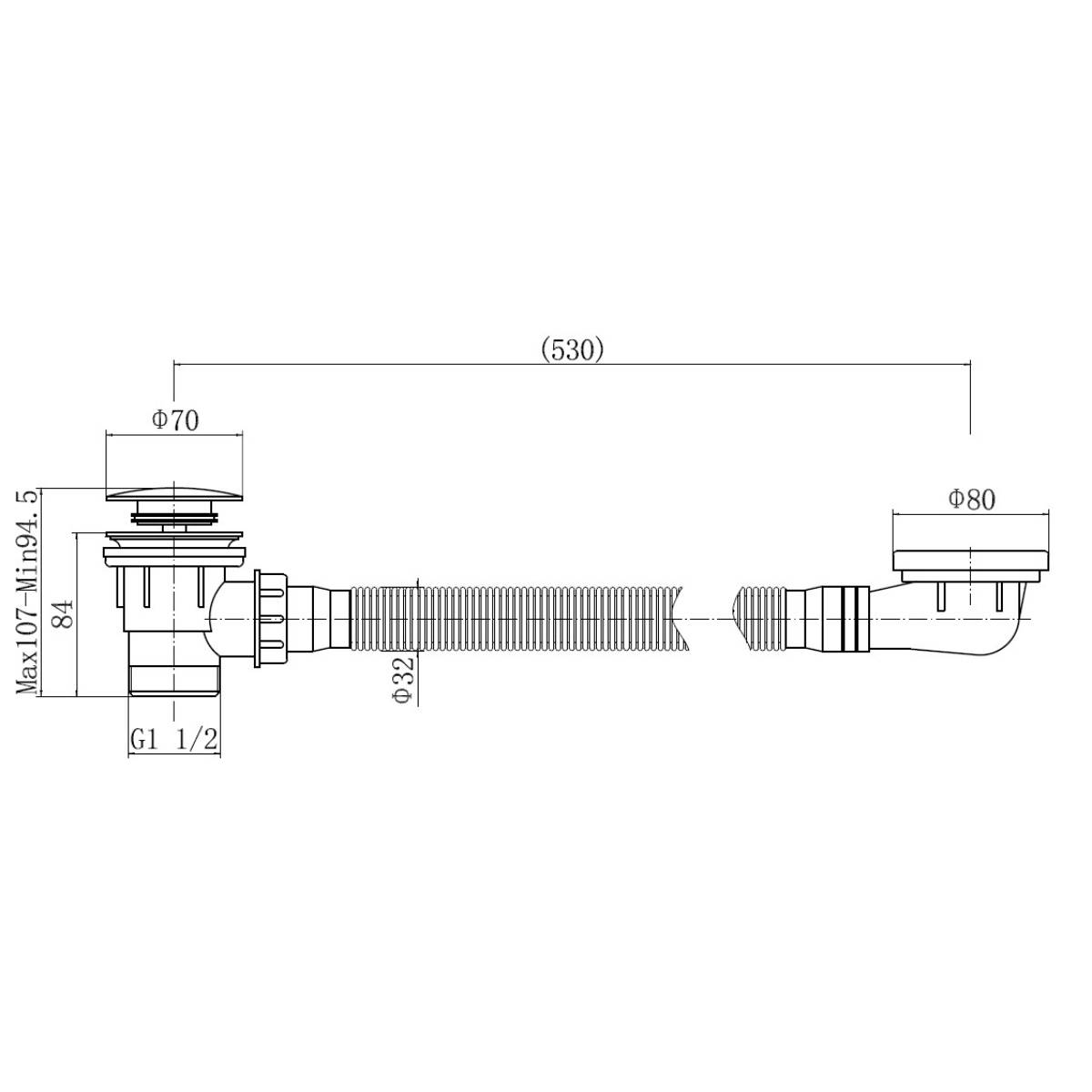

Technical Drawing

Eliseo Ricci Press Top Bath Waste & Overflow - Black
(11856)

Specification Sheet

Austin 600mm 2 Door Floorstanding Vanity Unit &
Basin - Anthracite
BrandObjekt Ceramica
Furniture Depth384mm
Furniture Height800mm
Furniture Width590mm
Basin Depth390mm
Basin Height280mm
Basin Width610mm
Mounting TypeFloor Standing
Storage TypeDoors
FinishAnthracite
ColourAnthracite
Basin Tap Mount1 Tap Hole
MaterialMFC door/drawer fronts & cabinets
Product Attributes

Technical Drawing

Austin 600mm 2 Door Floorstanding Vanity Unit &
Basin - Anthracite

Specification Sheet

Eliseo Ricci Vesu Basin Mixer - Black (11116)
ColourBlack
BrandEliseo Ricci
Tap Depth154mm
Tap Height139mm
Tap Width52mm
Tap StyleModern
Tap Holes1 Tap Hole
Tap TypeMixer
WRAS ApprovedYes
Swivel SpoutNo
FinishBlack
Max Pressure2.0 bar
Min Pressure0.2 bar
Waste SuppliedNo
MaterialBrass
Product Attributes

Technical Drawing

Eliseo Ricci Vesu Basin Mixer - Black (11116)

Specification Sheet

Eliseo Ricci Press Top Slotted Basin Waste - Black
(11123)
BrandEliseo Ricci
ColourBlack
MaterialBrass
Product Attributes

Specification Sheet

Ari Rimless Close Coupled Fully Back to Wall Toilet
& Soft Close Seat (11843)
ColourWhite
BrandObjekt Ceramica
Toilet Depth615mm
Toilet Height830mm
Toilet Pan Height430mm
Toilet Width365mm
Toilet SeatSoft Close
Toilet ShapeRound
Toilet StyleModern
MaterialCeramic
Product Attributes

Technical Drawing

Ari Rimless Close Coupled Fully Back to Wall Toilet
& Soft Close Seat (11843)

Specification Sheet

Eliseo Ricci Noir Curve Plus Thermostatic Rain
Shower - Black (11106)
BrandEliseo Ricci
Valve TypeBar Valve
Shower TypeRain Head Showers
ColourBlack
Max Pressure5.0 bar
Min Pressure0.5 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Eliseo Ricci Noir Curve Plus Thermostatic Rain
Shower - Black (11106)
