Specification Sheet

Black Triple Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 300mm Shower Head & Slide Rail
Kit (12563)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourBlack
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Black Triple Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 300mm Shower Head & Slide Rail
Kit (12563)

Specification Sheet

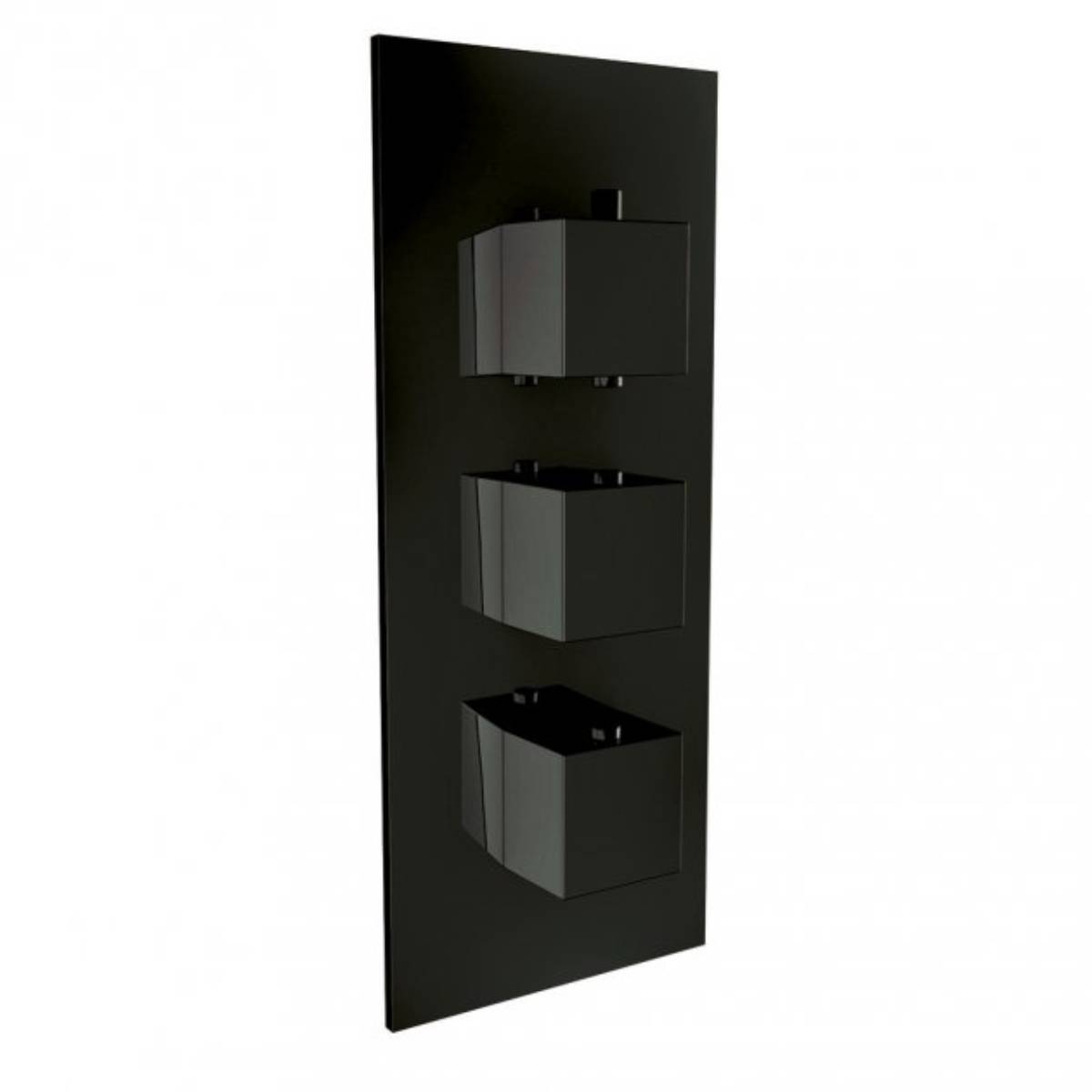

Triple Thermostatic Square Handle Concealed Valve -
Black (12550)
Length123.5mm
Width120mm
Height280mm
BrandScudo
ColourBlack
Shower Valve TypeConcealed
Function2 Outlets
Valve ShapeSquare
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

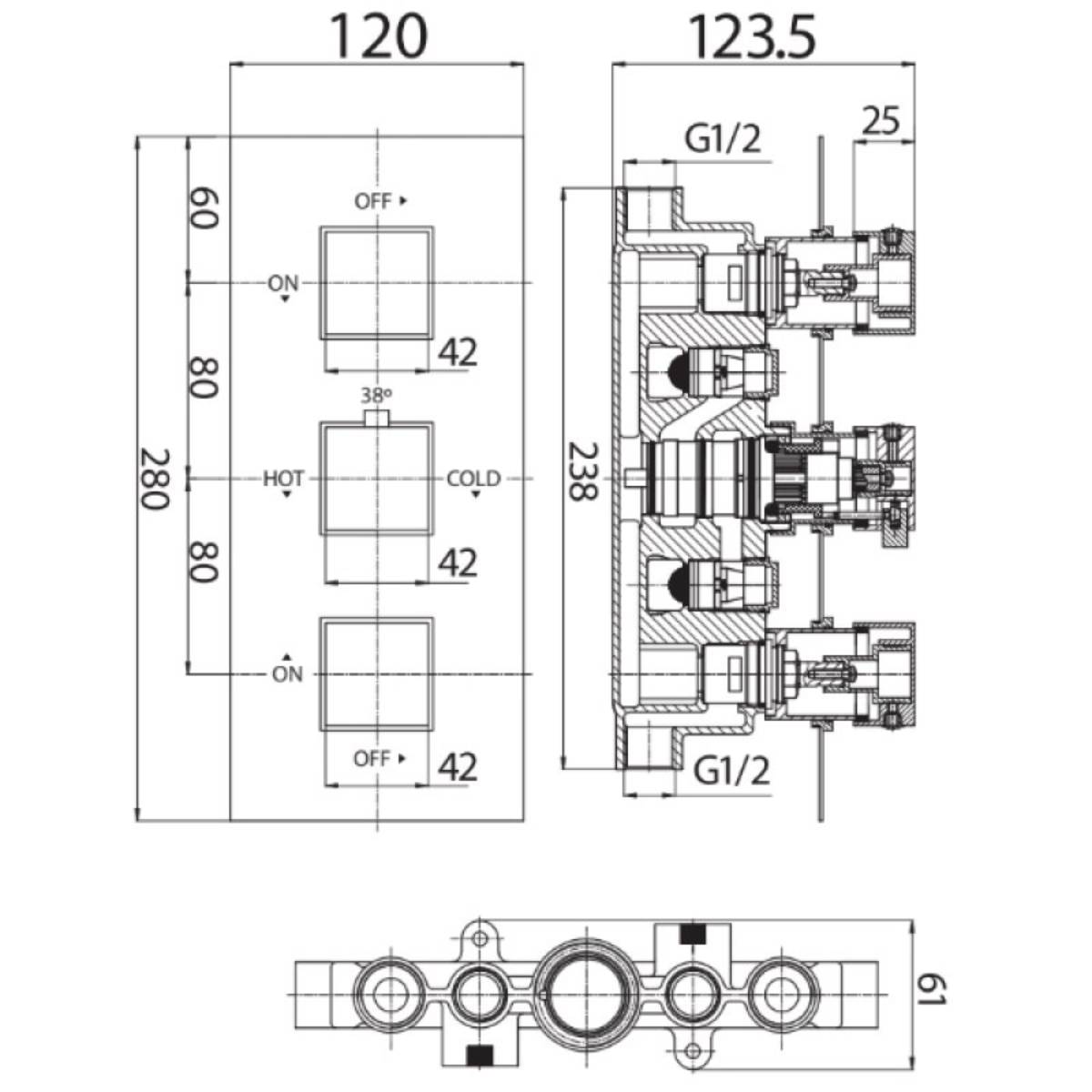

Technical Drawing

Triple Thermostatic Square Handle Concealed Valve -
Black (12550)

Specification Sheet

Black Square 300mm Fixed Shower Head (12542)
BrandEliseo Ricci
ColourBlack
Height2mm
Width300mm
Length300mm
MaterialStainless Steel
StyleModern
Product Attributes

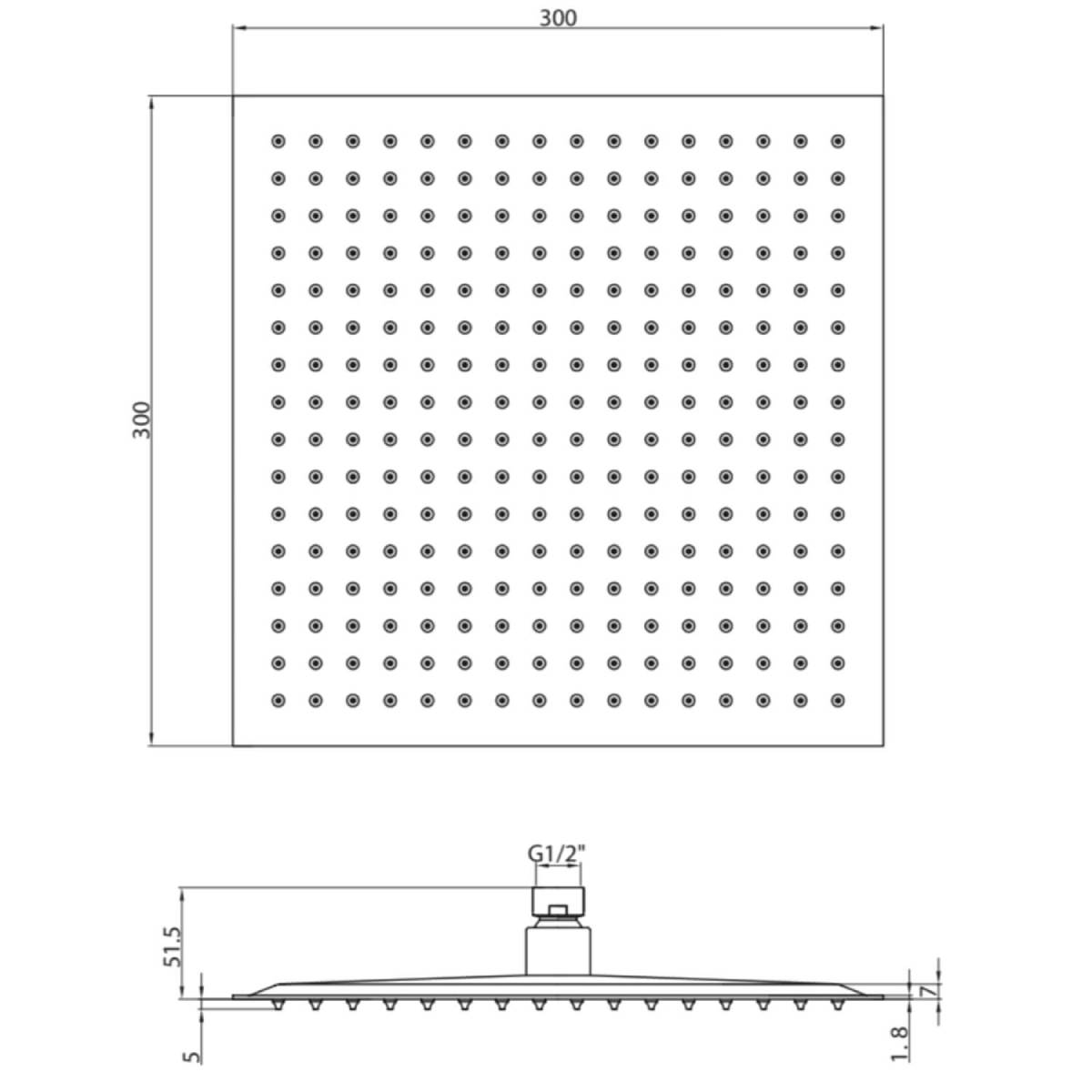

Technical Drawing

Black Square 300mm Fixed Shower Head (12542)

Specification Sheet

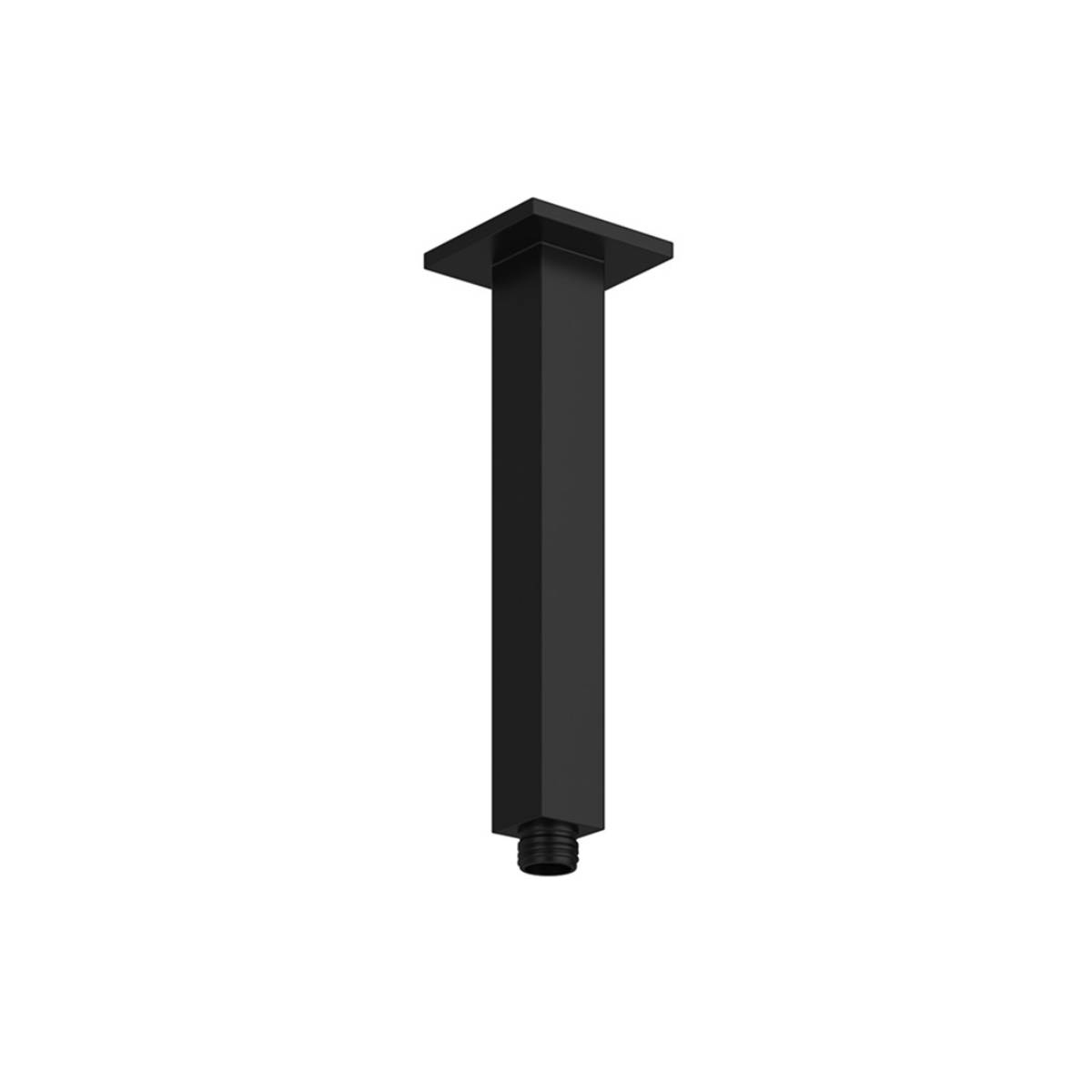

Black Square Ceiling Mounted Arm (12544)
BrandEliseo Ricci
ColourBlack
Length300mm
MaterialStainless Steel
StyleModern
Product Attributes

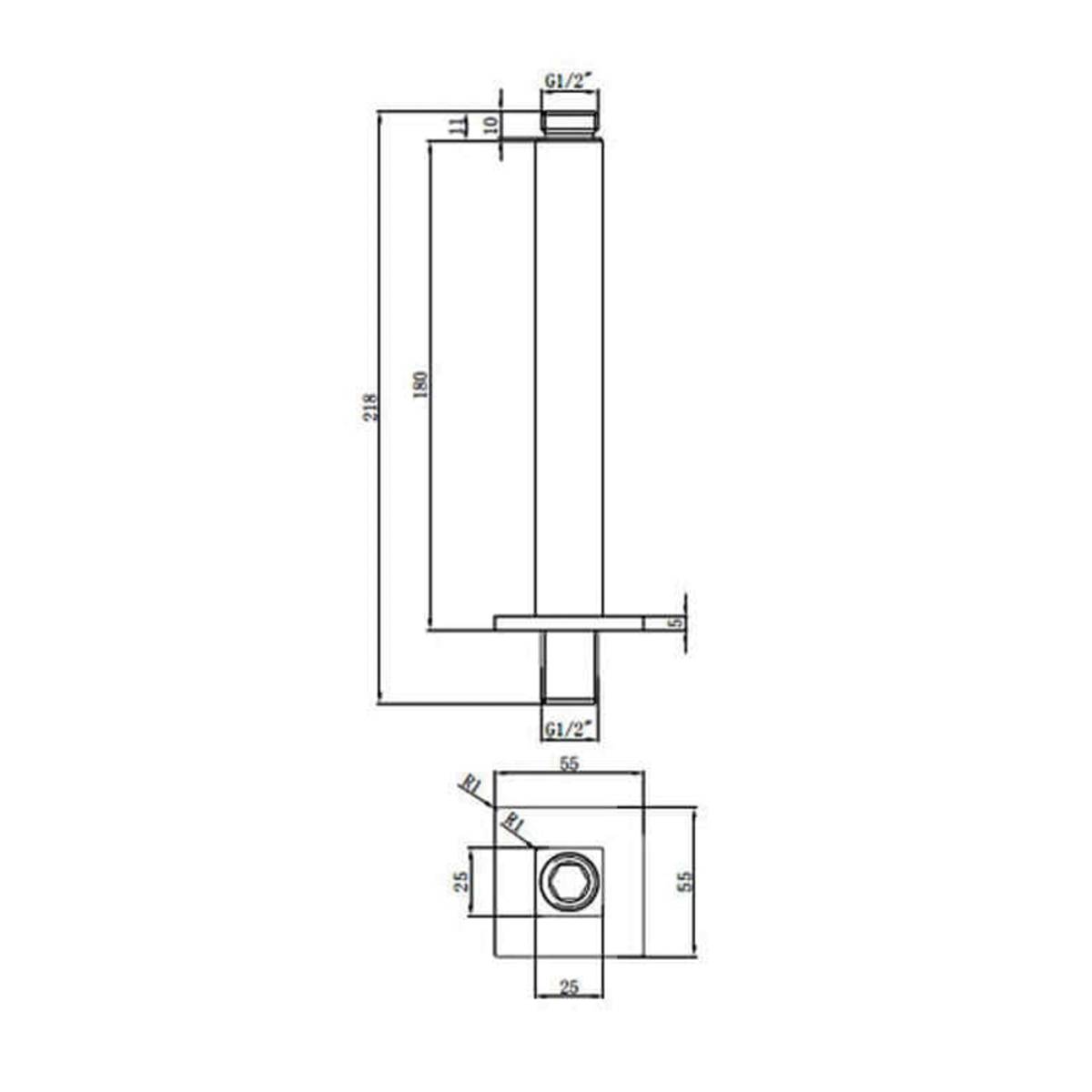

Technical Drawing

Black Square Ceiling Mounted Arm (12544)

Specification Sheet

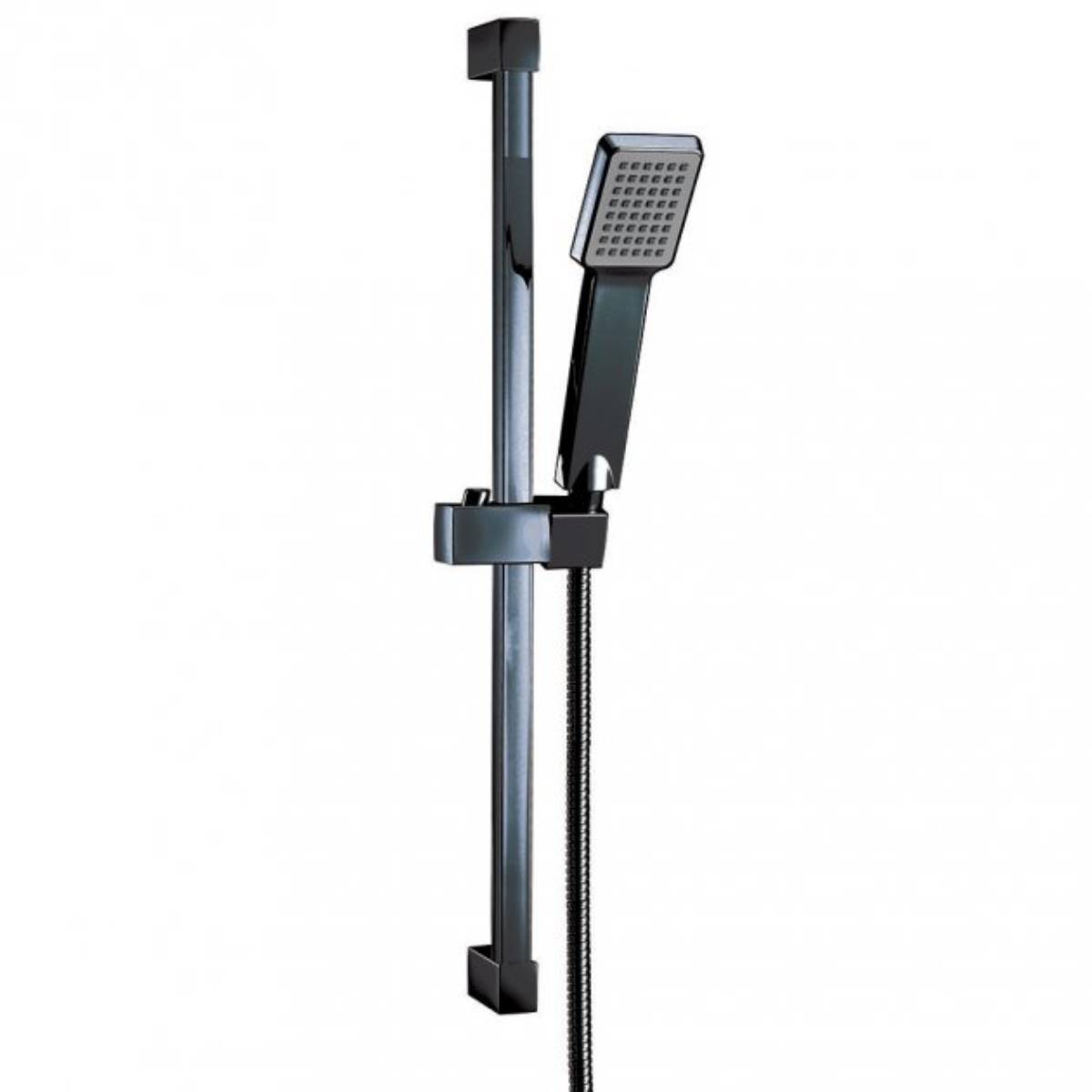

Eliseo Ricci Square Slide Rail Kit with Paddle
Handset - Black (12495)
BrandEliseo Ricci
ColourBlack
Height610mm
Length57.5mm
MaterialBrass
StyleModern
Product Attributes

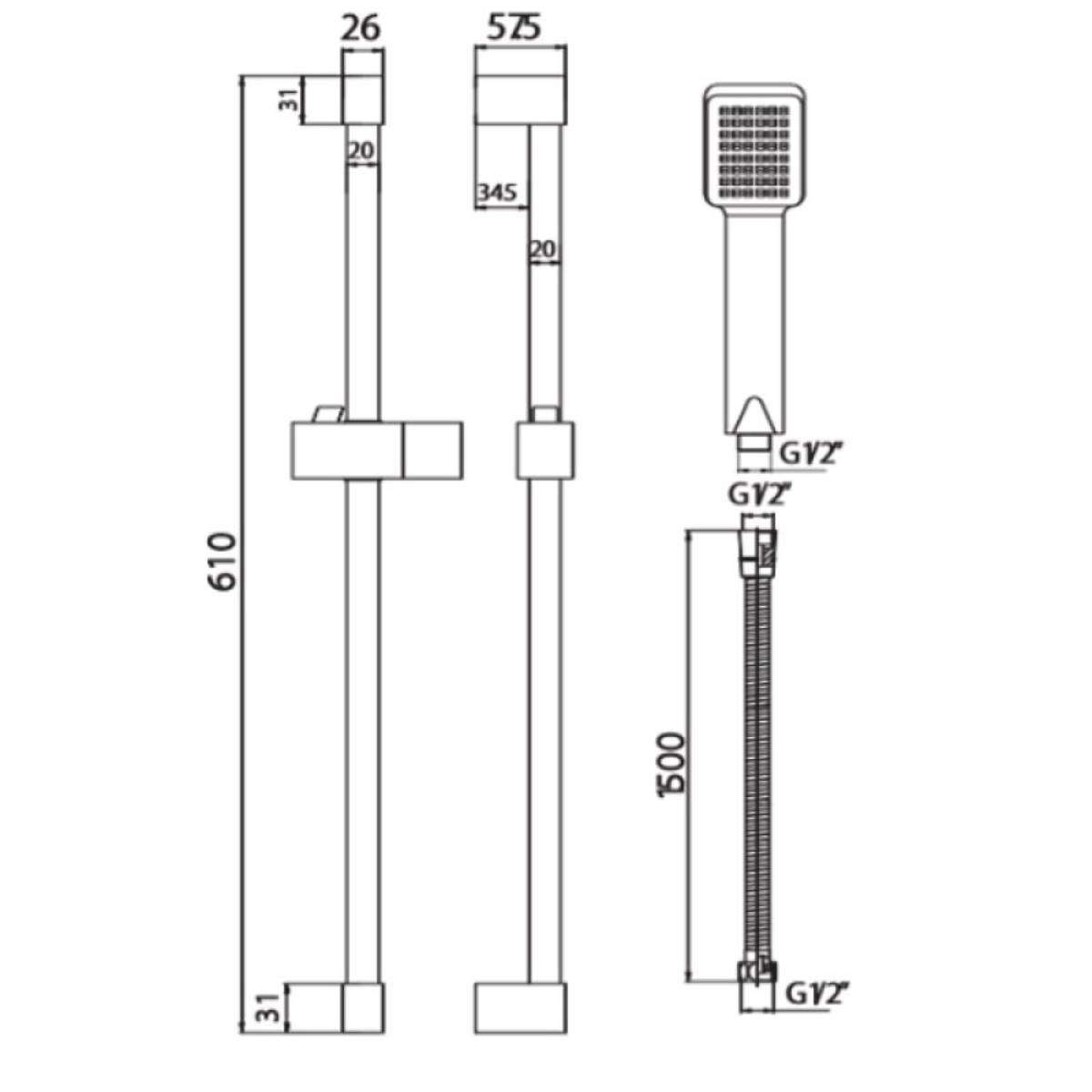

Technical Drawing

Eliseo Ricci Square Slide Rail Kit with Paddle
Handset - Black (12495)

Specification Sheet

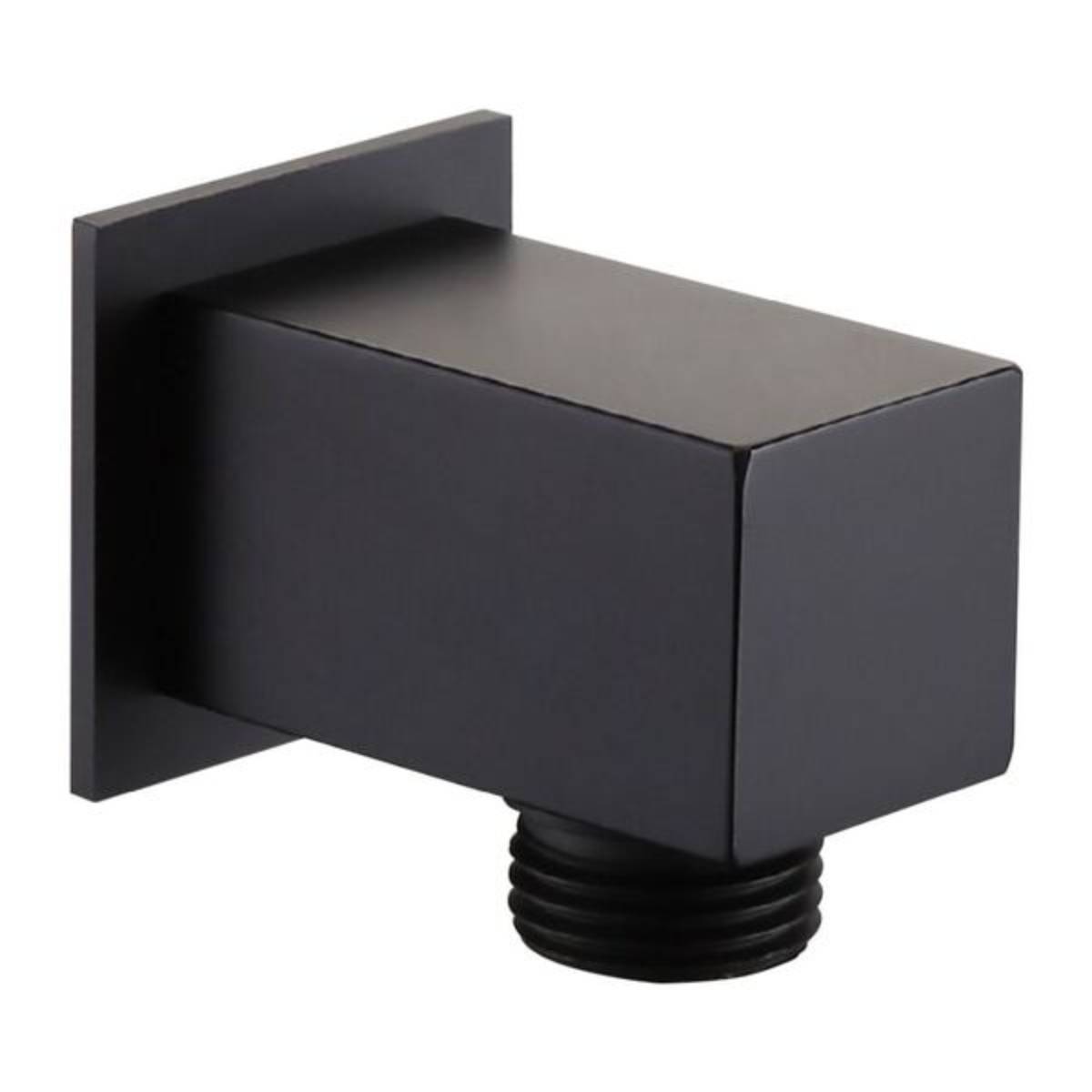

Matt Black Square Wall Outlet Elbow (7555)
BrandEliseo Ricci
ColourBlack
MaterialBrass
StyleModern
Product Attributes
