Specification Sheet

Black Triple Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 200mm Shower Head & Handset
(12558)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourBlack
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Black Triple Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 200mm Shower Head & Handset
(12558)

Specification Sheet

Triple Thermostatic Square Handle Concealed Valve -
Black (12550)
Length123.5mm
Width120mm
Height280mm
BrandScudo
ColourBlack
Shower Valve TypeConcealed
Function2 Outlets
Valve ShapeSquare
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

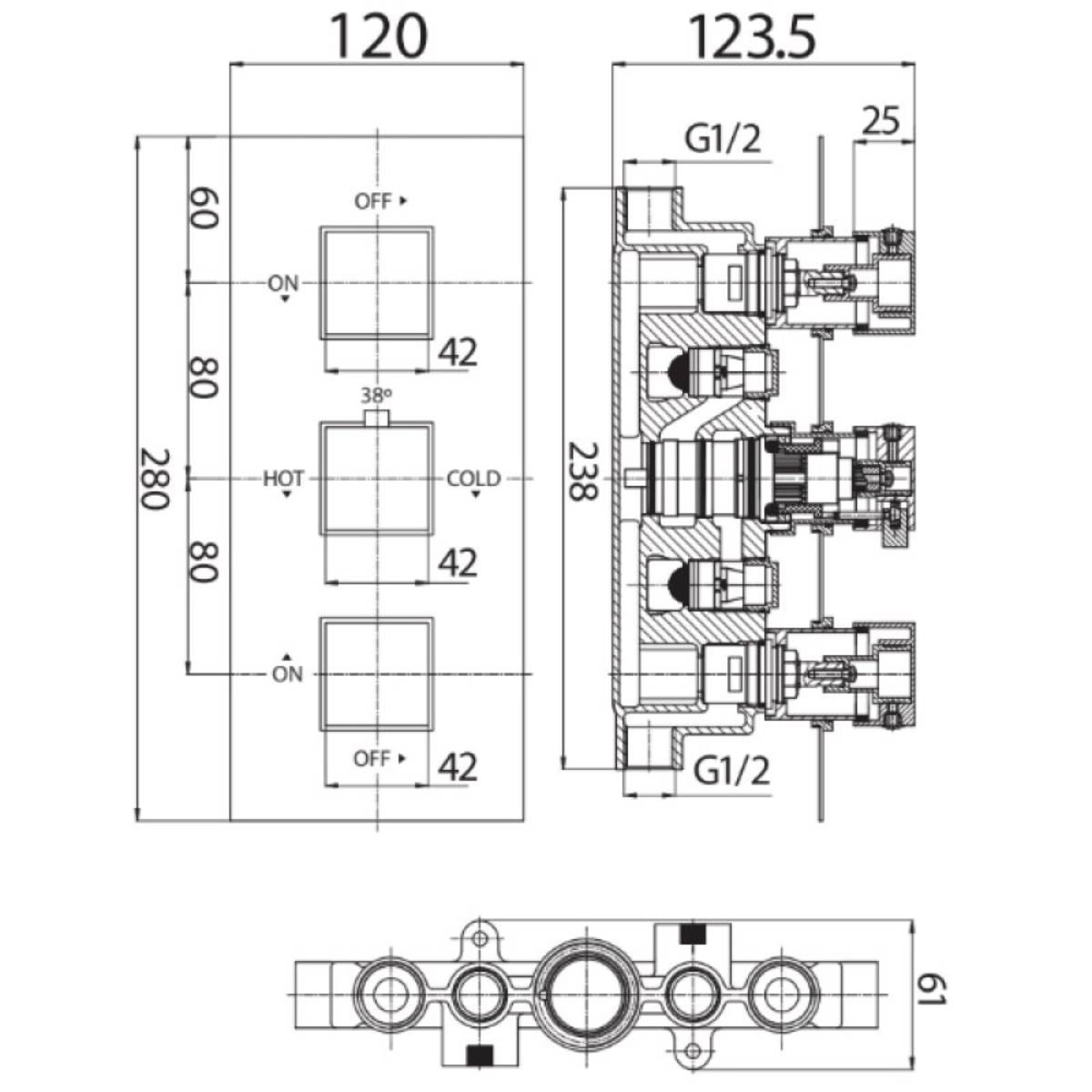

Technical Drawing

Triple Thermostatic Square Handle Concealed Valve -
Black (12550)

Specification Sheet

Black Square 200mm Fixed Shower Head (12539)
BrandEliseo Ricci
ColourBlack
Height2mm
Width200mm
Length200mm
MaterialStainless Steel
StyleModern
Product Attributes

Technical Drawing

Black Square 200mm Fixed Shower Head (12539)

Specification Sheet

Black Square Ceiling Mounted Arm (12544)
BrandEliseo Ricci
ColourBlack
Length300mm
MaterialStainless Steel
StyleModern
Product Attributes

Technical Drawing

Black Square Ceiling Mounted Arm (12544)

Specification Sheet

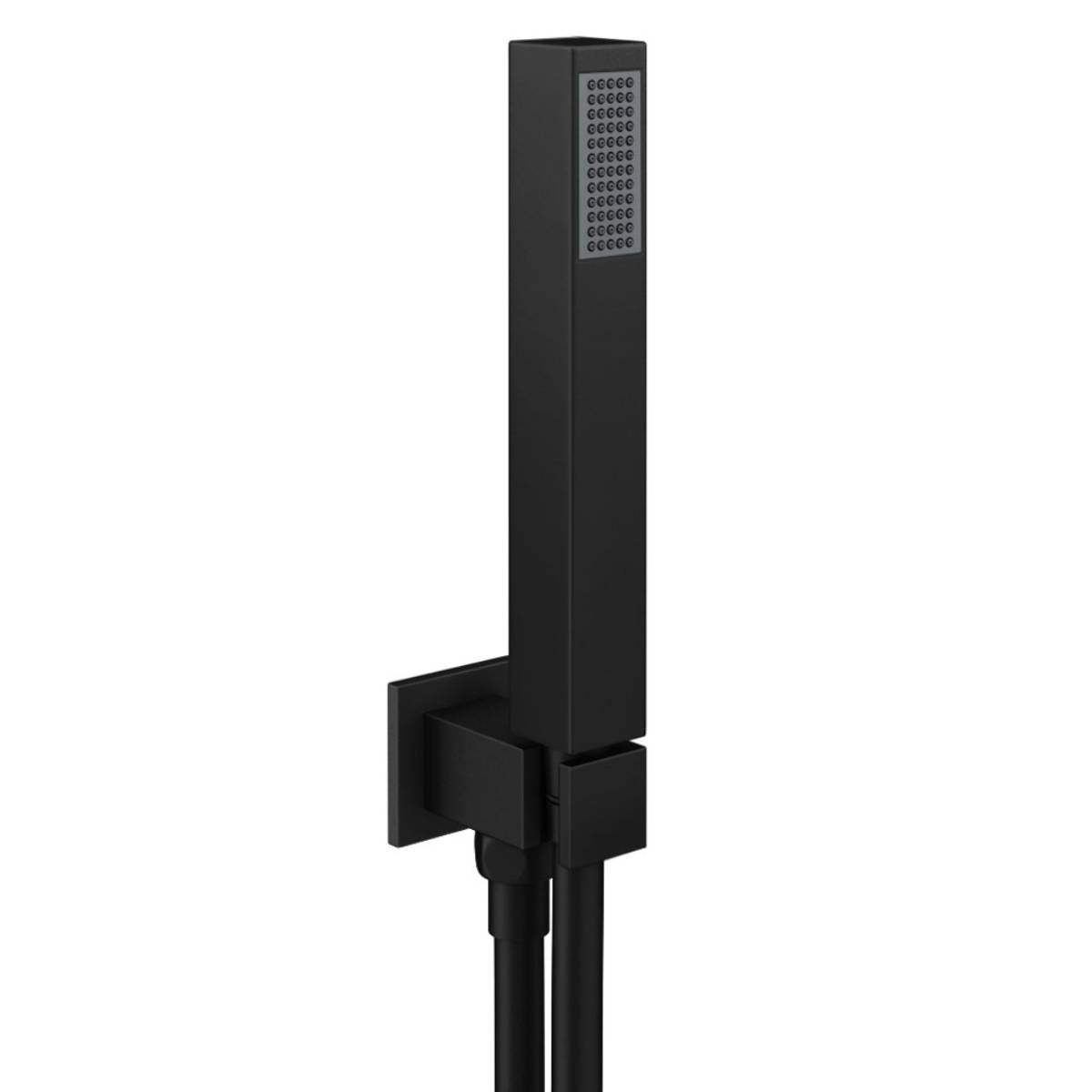

Square Shower Outlet, Hose and Head - Black (12553)
BrandEliseo Ricci
ColourBlack
MaterialBrass/ABS
StyleModern
Product Attributes
