Specification Sheet

Black Twin Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 200mm Shower Head (12545)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourBlack
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Black Twin Thermostatic Concealed Mixer Shower Kit
with Ceiling Mounted 200mm Shower Head (12545)

Specification Sheet

Twin Thermostatic Square Handle Concealed Valve -
Black (12538)
Length123.5mm
Width120mm
Height215mm
BrandScudo
ColourBlack
Shower Valve TypeConcealed
Function1 Outlet
Valve ShapeSquare
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

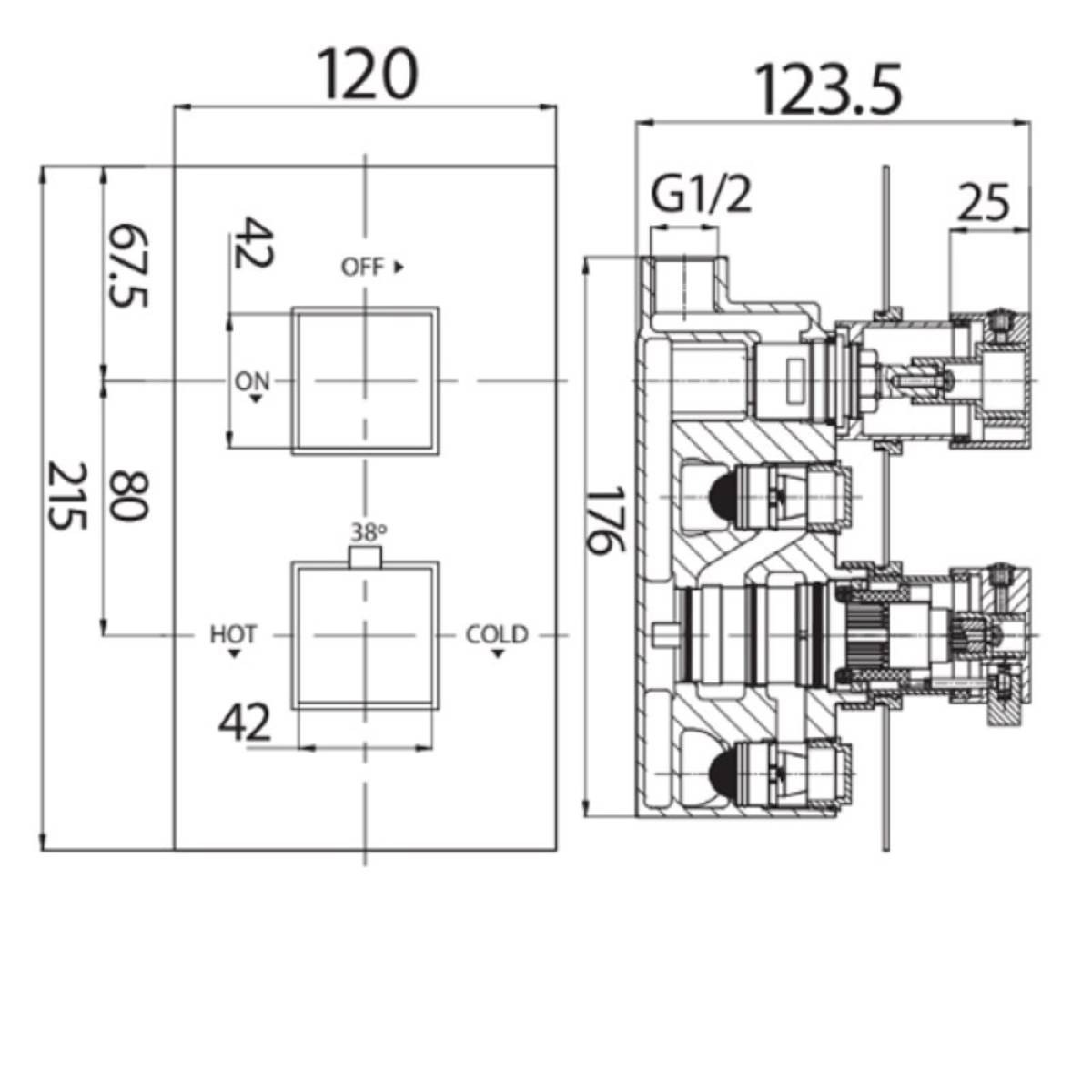

Technical Drawing

Twin Thermostatic Square Handle Concealed Valve -
Black (12538)

Specification Sheet

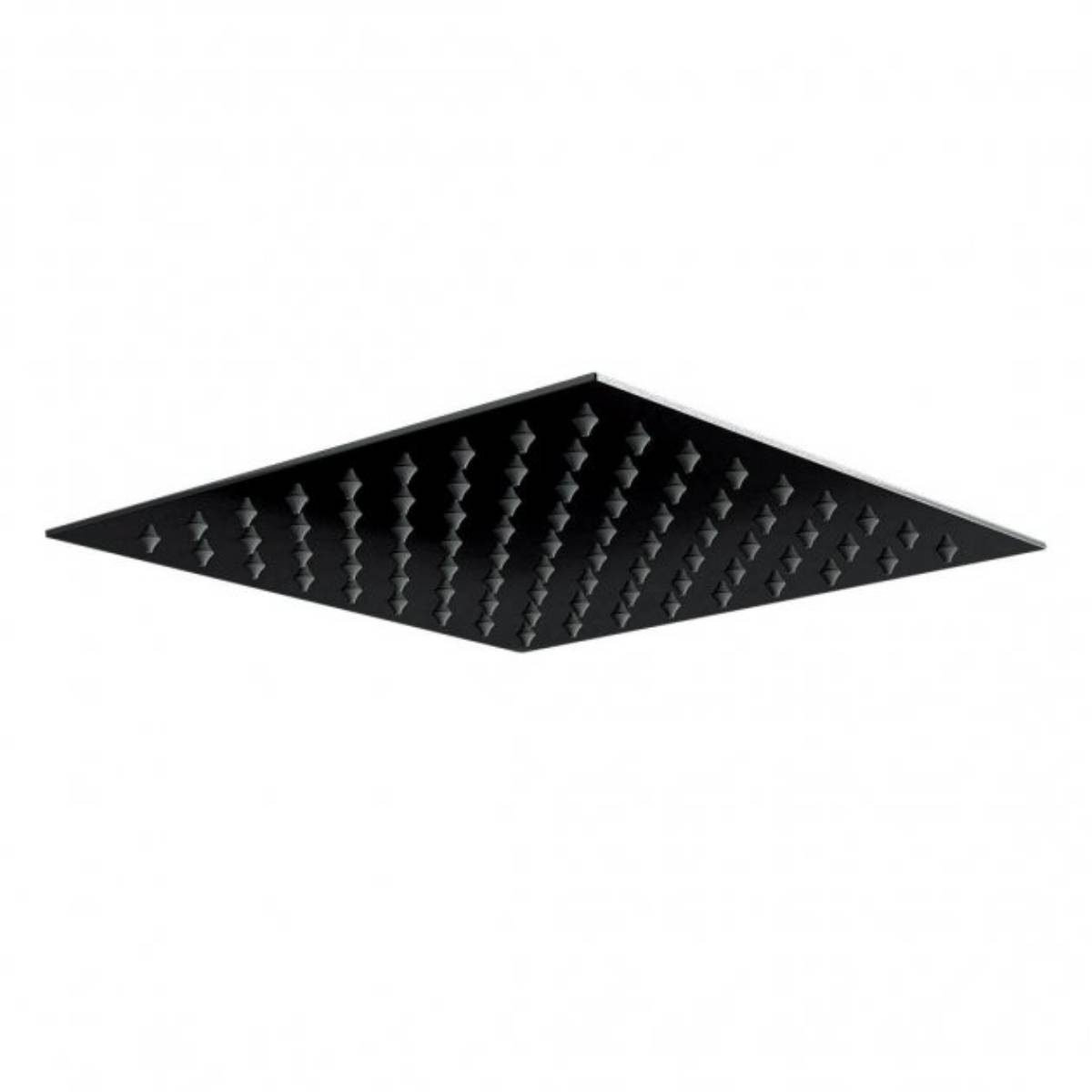

Black Square 200mm Fixed Shower Head (12539)
BrandEliseo Ricci
ColourBlack
Height2mm
Width200mm
Length200mm
MaterialStainless Steel
StyleModern
Product Attributes

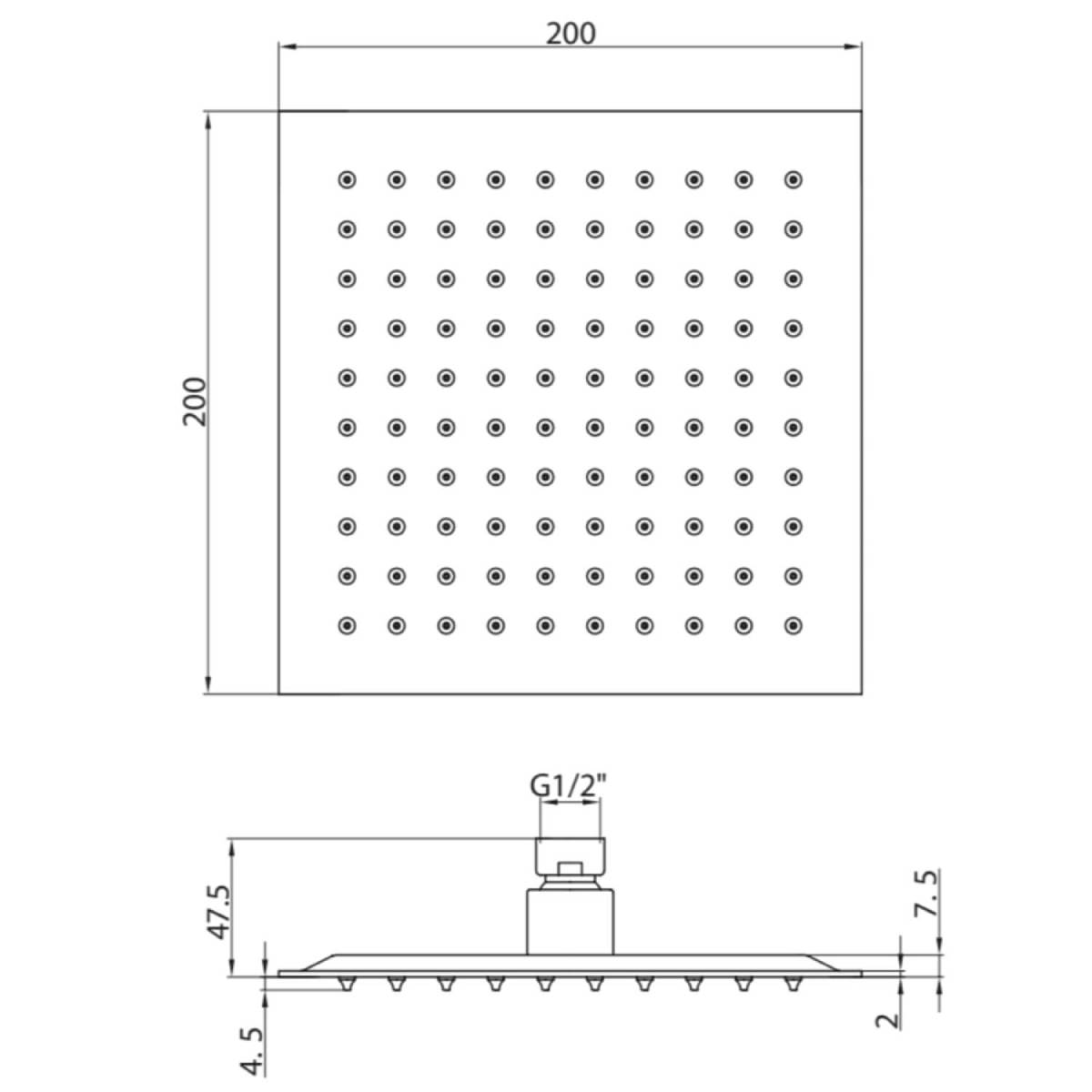

Technical Drawing

Black Square 200mm Fixed Shower Head (12539)

Specification Sheet

Black Square Ceiling Mounted Arm (12544)
BrandEliseo Ricci
ColourBlack
Length300mm
MaterialStainless Steel
StyleModern
Product Attributes

Technical Drawing

Black Square Ceiling Mounted Arm (12544)
