Specification Sheet

Square Triple Thermostatic Concealed Mixer Shower
Kit with Wall Mounted 200mm Shower Head, Slide Rail
Kit & Body Jets (12519)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourChrome
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Square Triple Thermostatic Concealed Mixer Shower
Kit with Wall Mounted 200mm Shower Head, Slide Rail
Kit & Body Jets (12519)

Specification Sheet

Triple Thermostatic Square Handle Concealed Valve
with Diverter (6538)
Length123.5mm
Width120mm
Height280mm
BrandScudo
ColourChrome
Shower Valve TypeConcealed
Function3 Outlets
Valve ShapeSquare
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

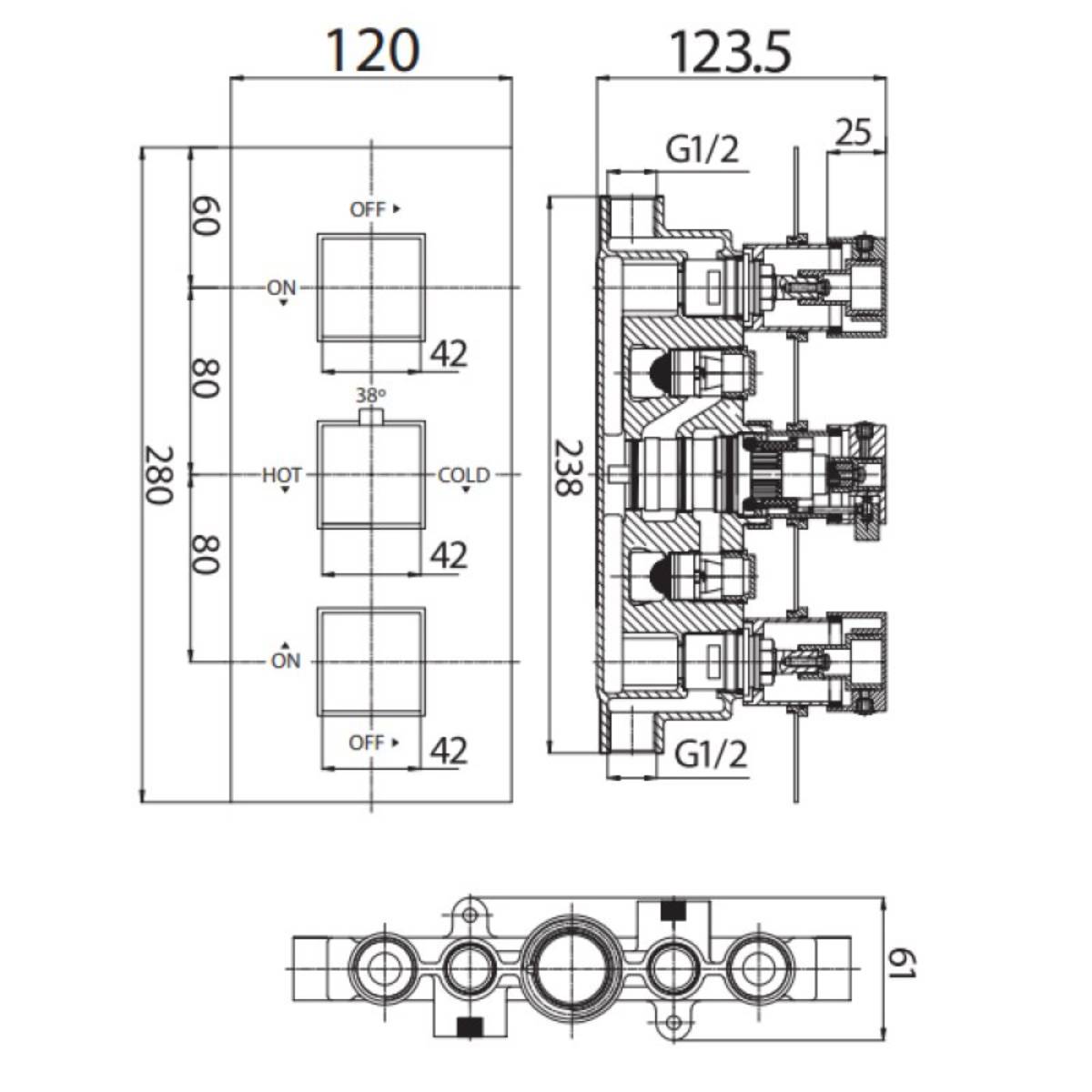

Technical Drawing

Triple Thermostatic Square Handle Concealed Valve
with Diverter (6538)

Specification Sheet

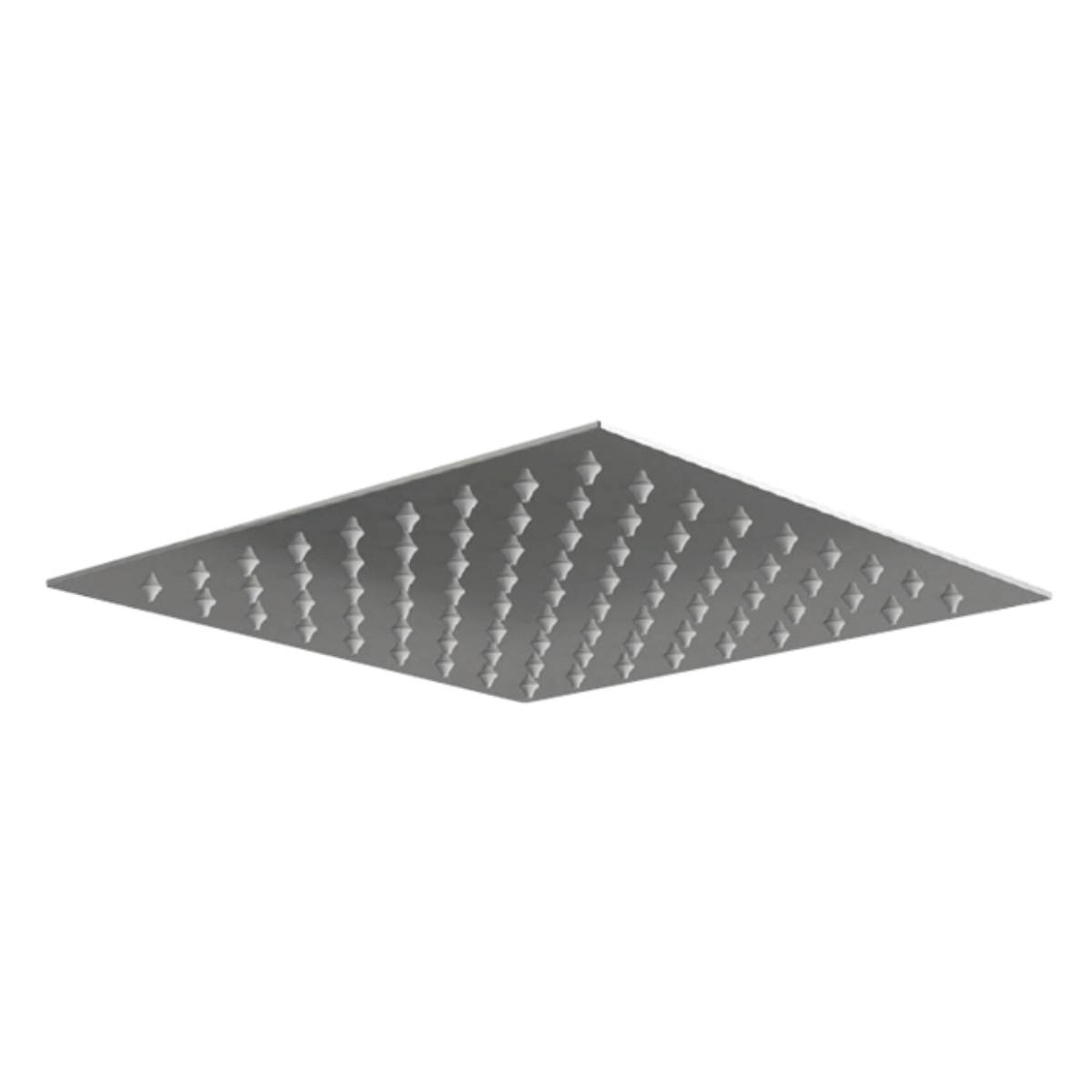

Square 200mm Fixed Shower Head (6542)
BrandEliseo Ricci
ColourChrome
Height2mm
Width200mm
Length200mm
MaterialStainless Steel
StyleModern
Product Attributes

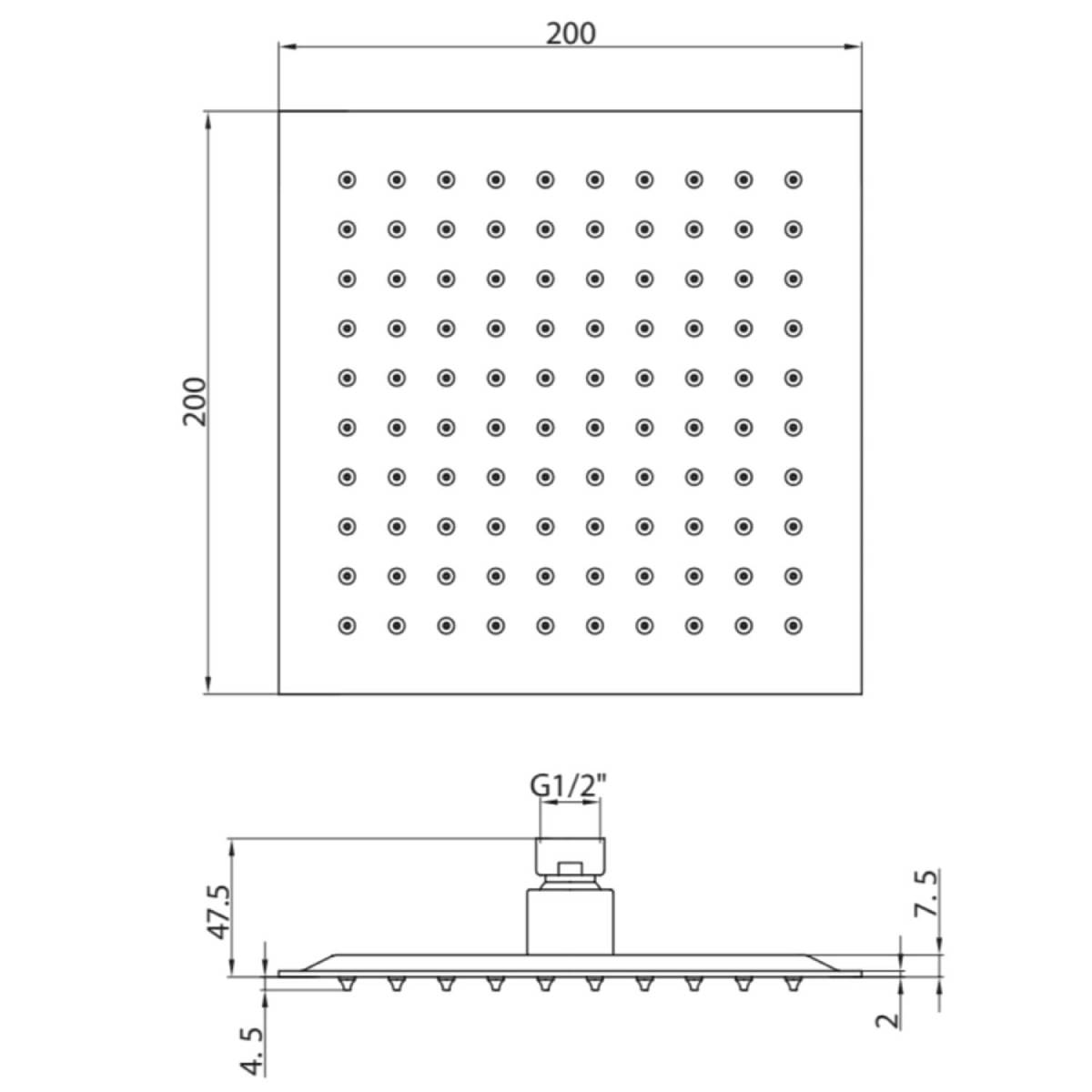

Technical Drawing

Square 200mm Fixed Shower Head (6542)

Specification Sheet

Square Wall Mounted Arm (10501)
BrandAqua Dart
ColourChrome
MaterialStainless Steel
Product Attributes

Technical Drawing

Square Wall Mounted Arm (10501)

Specification Sheet

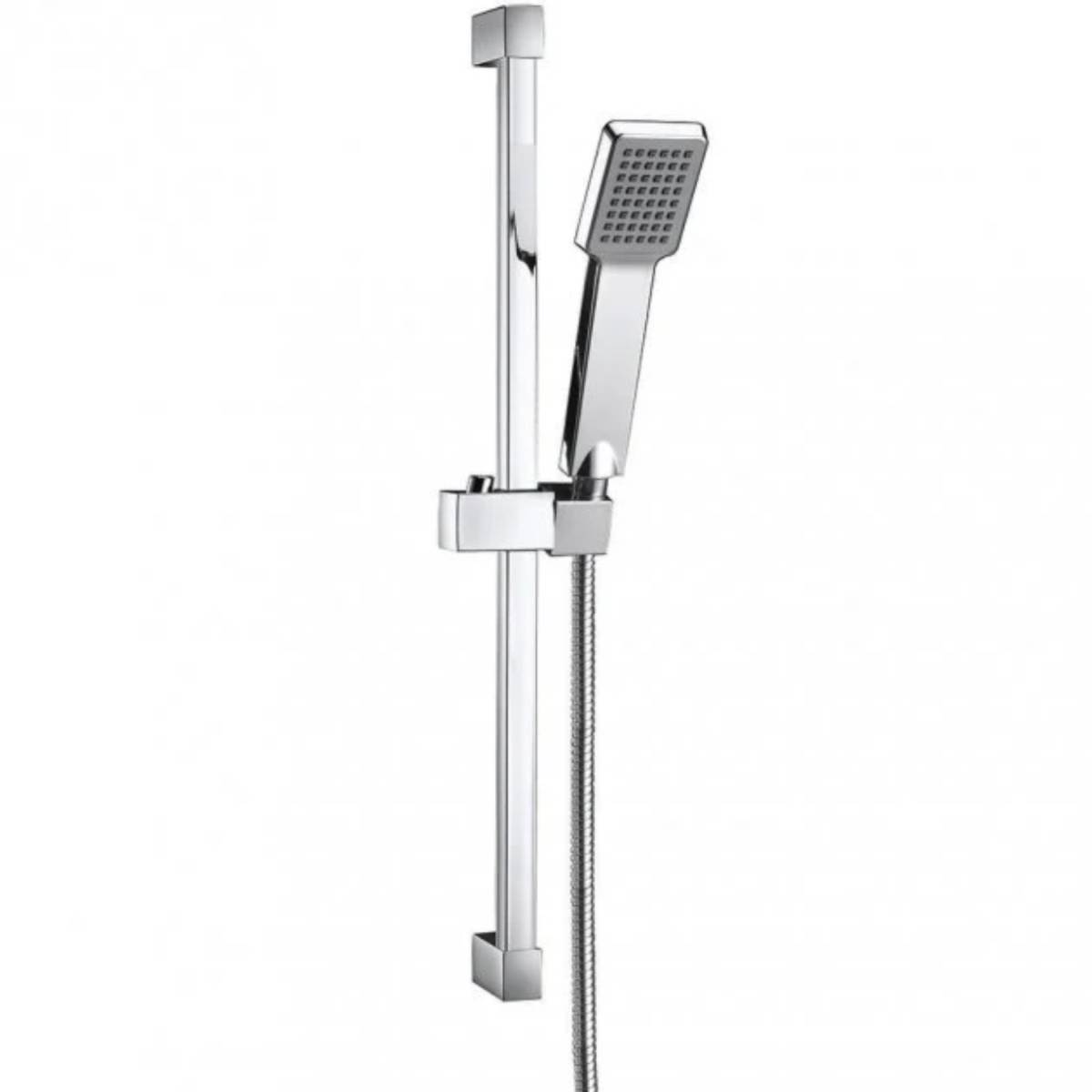

Eliseo Ricci Square Slide Rail Kit with Paddle
Handset (6540)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes

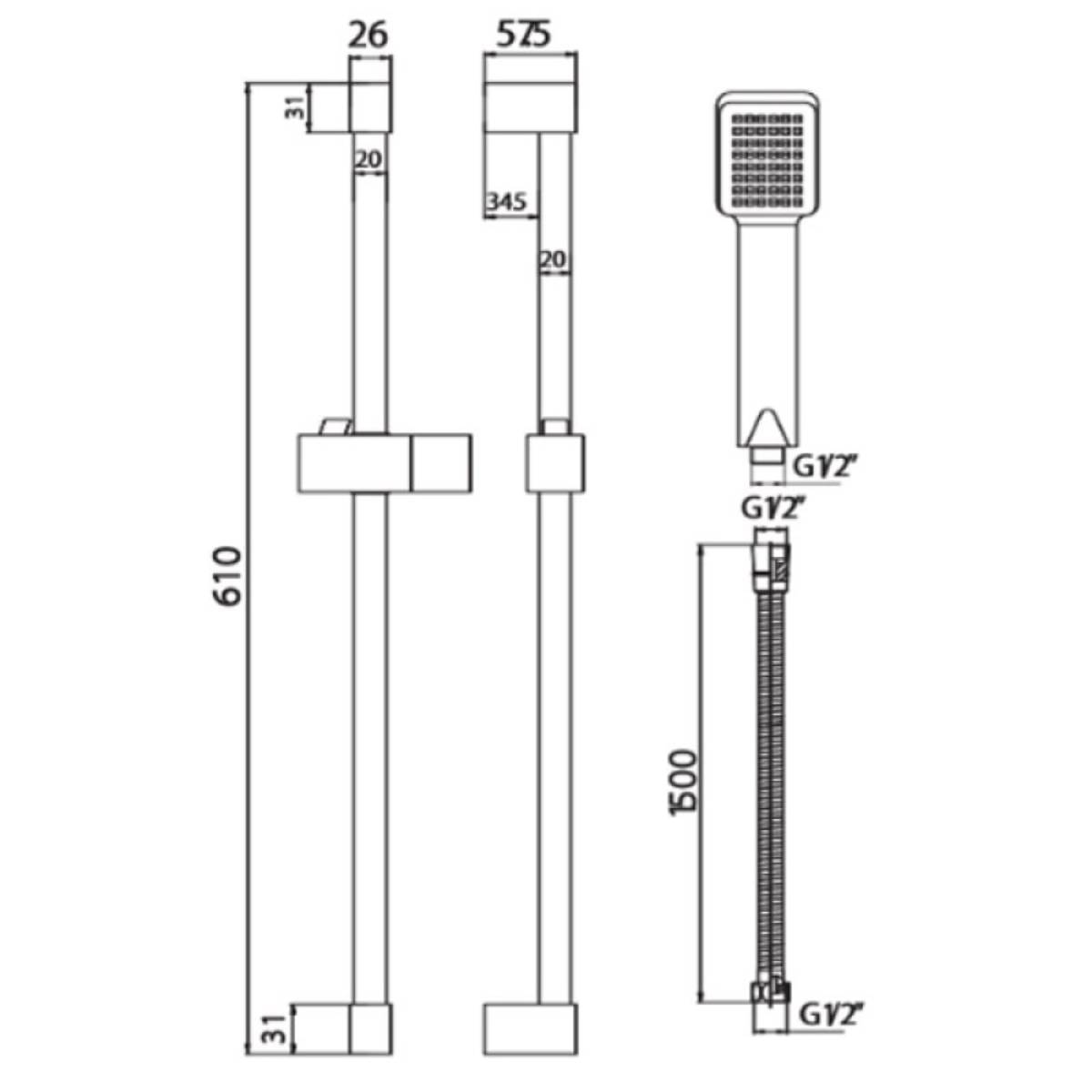

Technical Drawing

Eliseo Ricci Square Slide Rail Kit with Paddle
Handset (6540)

Specification Sheet

Square Shower Wall Outlet Elbow (6548)
BrandScudo
ColourChrome
MaterialBrass
Product Attributes

Specification Sheet

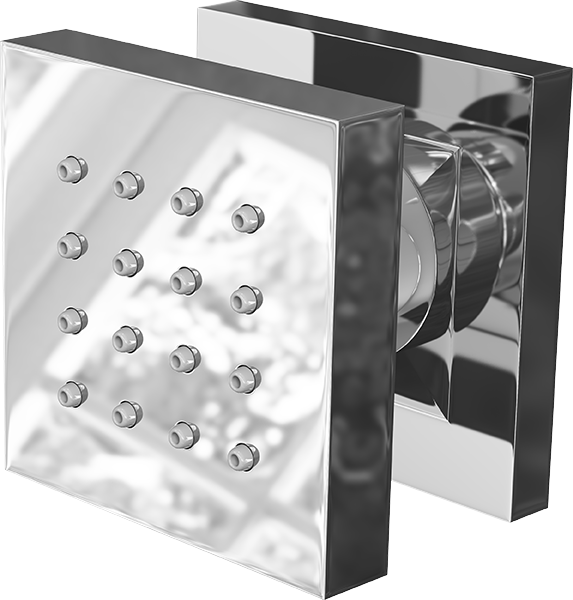

Eliseo Ricci Square Body Jet (7587)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes
