Specification Sheet

Square Triple Thermostatic Concealed Mixer Shower
Kit with Wall Mounted 300mm Shower Head & Handset
(12516)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourChrome
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Square Triple Thermostatic Concealed Mixer Shower
Kit with Wall Mounted 300mm Shower Head & Handset
(12516)

Specification Sheet

Triple Thermostatic Square Handle Concealed Valve
(6534)
Length123.5mm
Width120mm
Height280mm
BrandScudo
ColourChrome
Shower Valve TypeConcealed
Function2 Outlets
Valve ShapeSquare
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

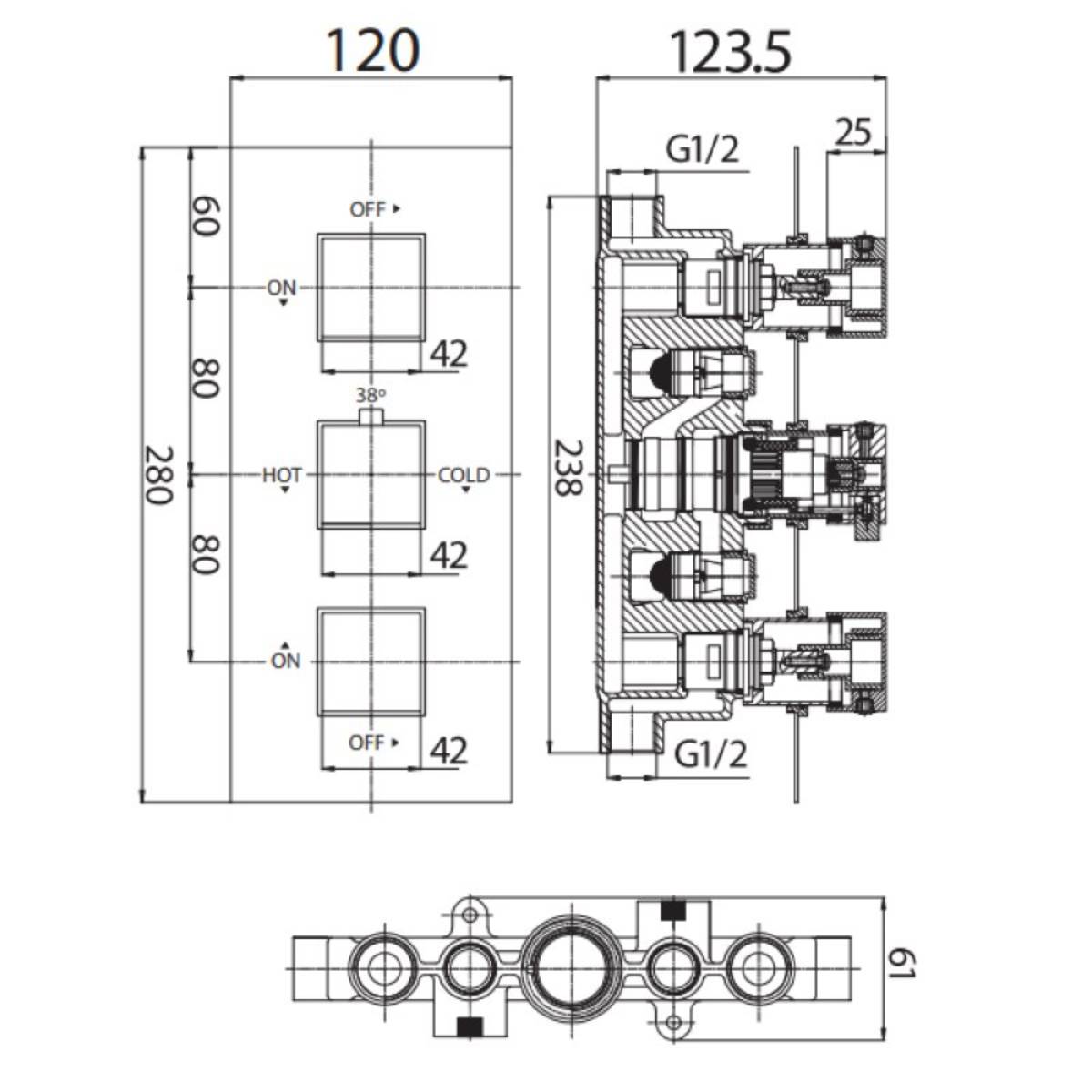

Technical Drawing

Triple Thermostatic Square Handle Concealed Valve
(6534)

Specification Sheet

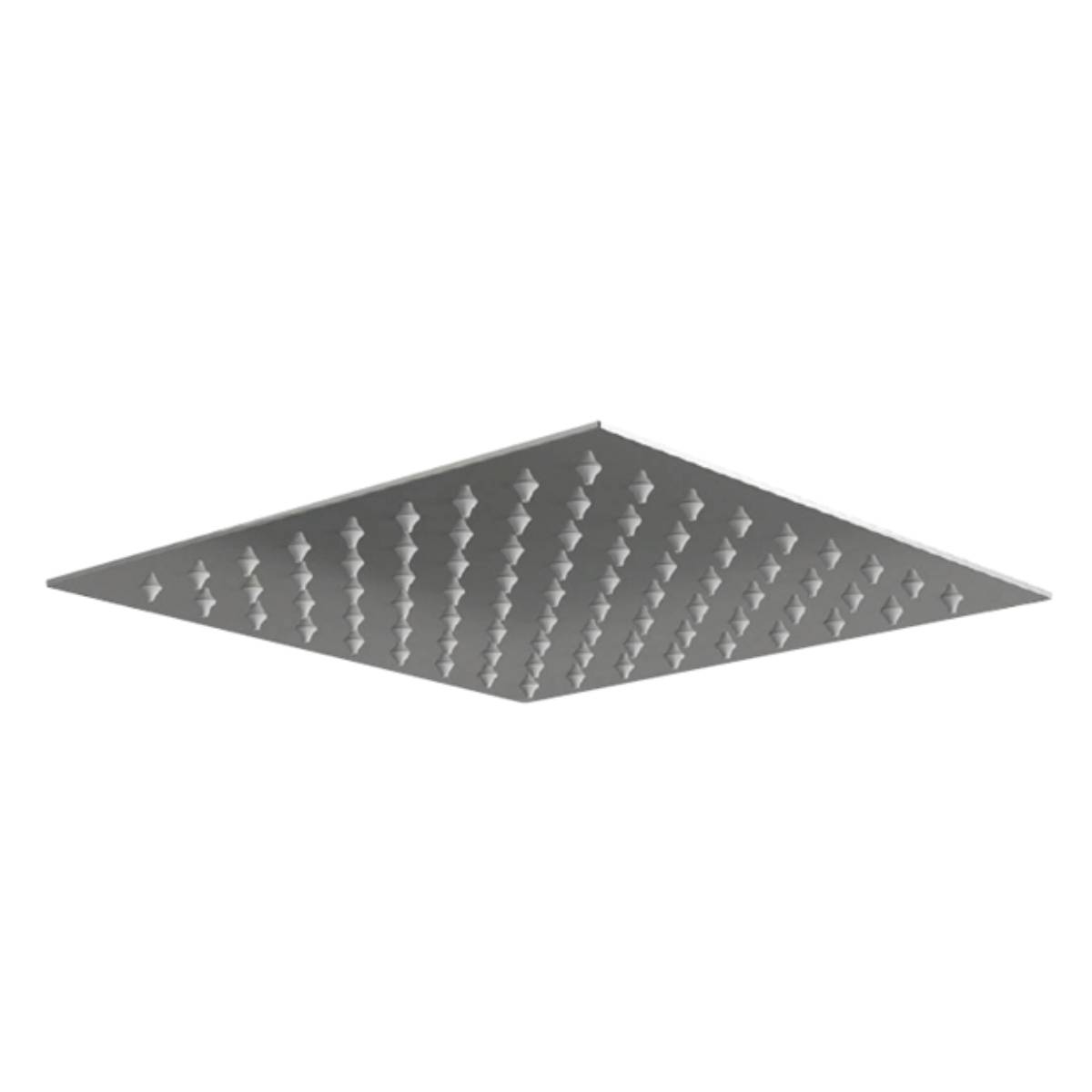

Square 300mm Fixed Shower Head (6544)
BrandEliseo Ricci
ColourChrome
Height2mm
Width300mm
Length300mm
MaterialStainless Steel
StyleModern
Product Attributes

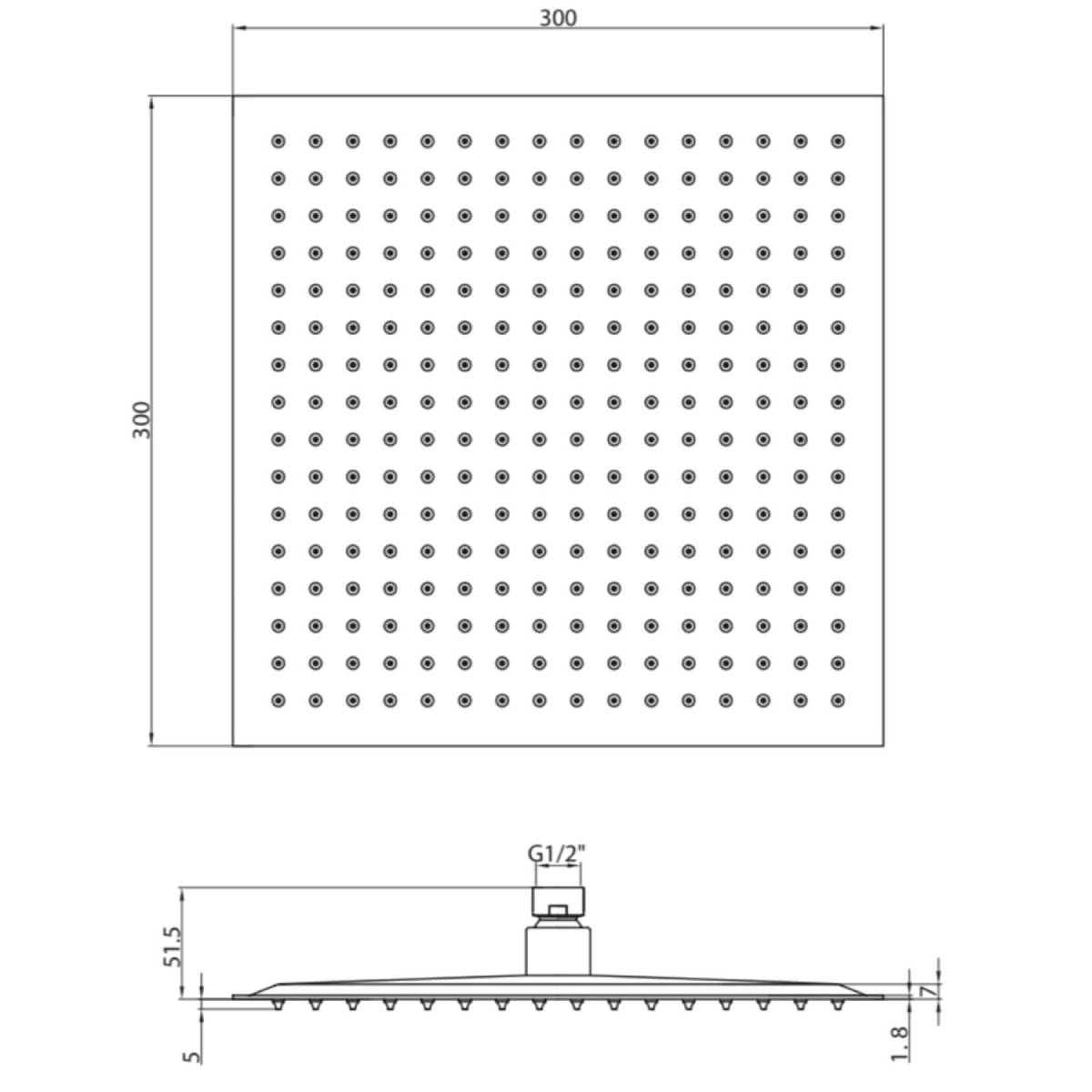

Technical Drawing

Square 300mm Fixed Shower Head (6544)

Specification Sheet

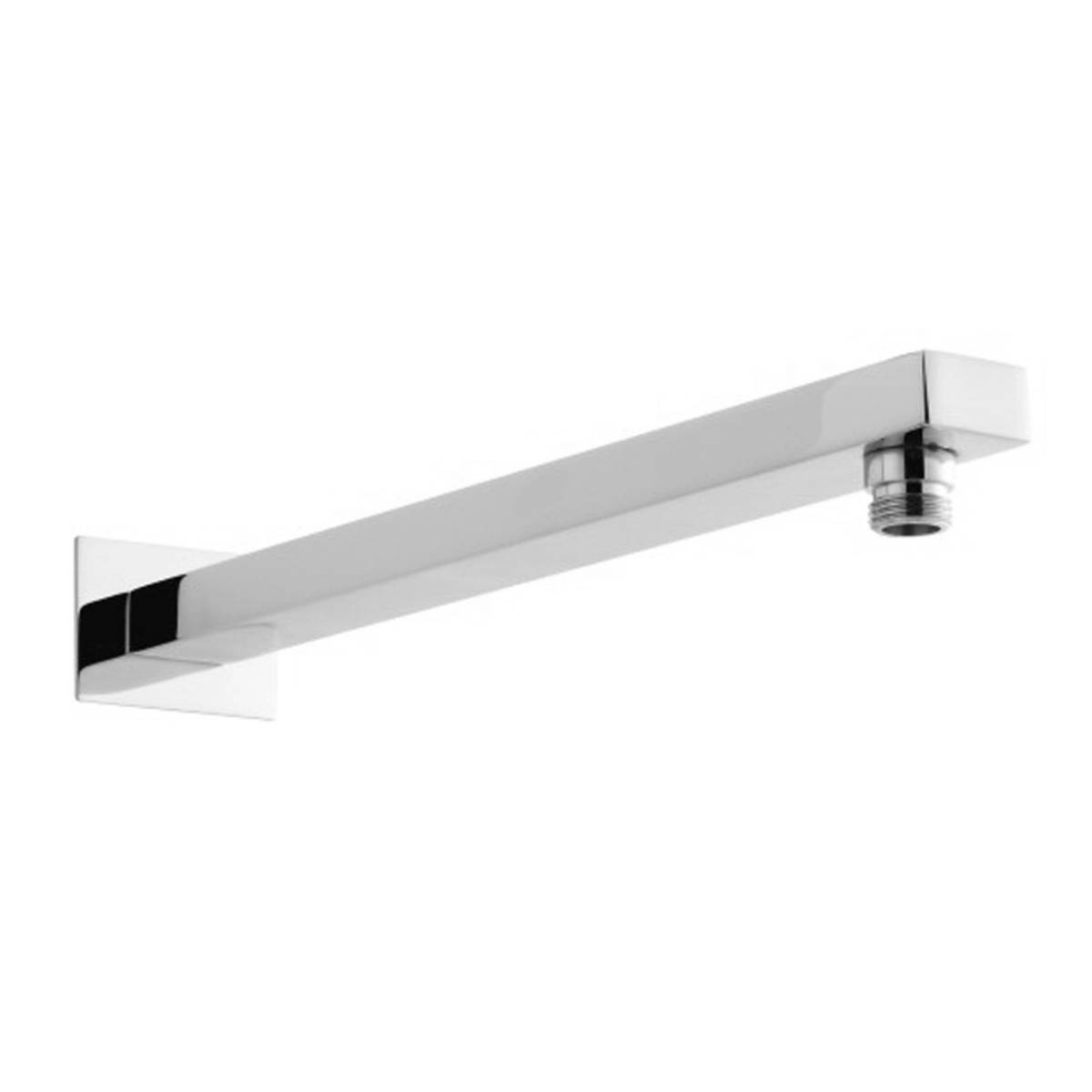

Square Wall Mounted Arm (10501)
BrandAqua Dart
ColourChrome
MaterialStainless Steel
Product Attributes

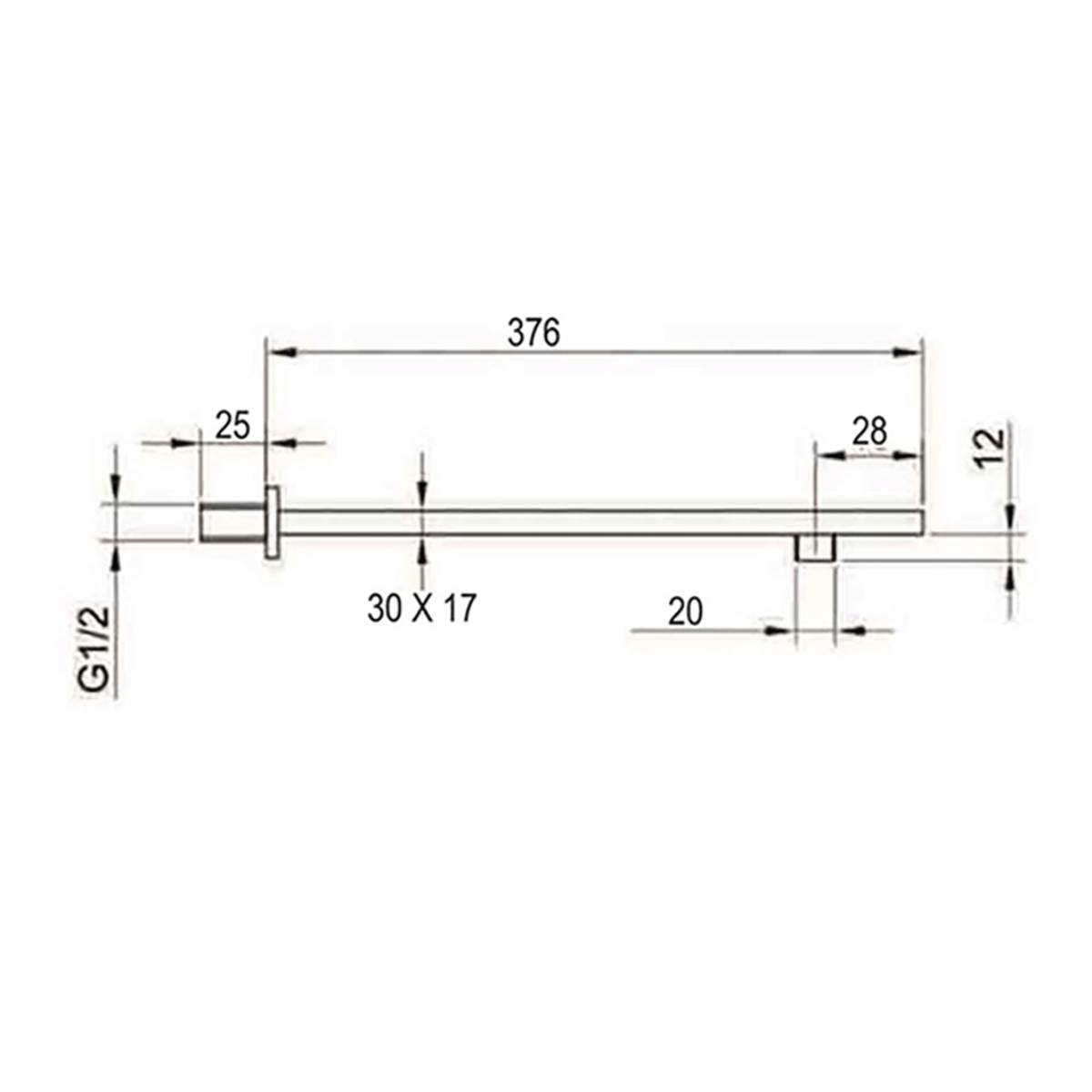

Technical Drawing

Square Wall Mounted Arm (10501)

Specification Sheet

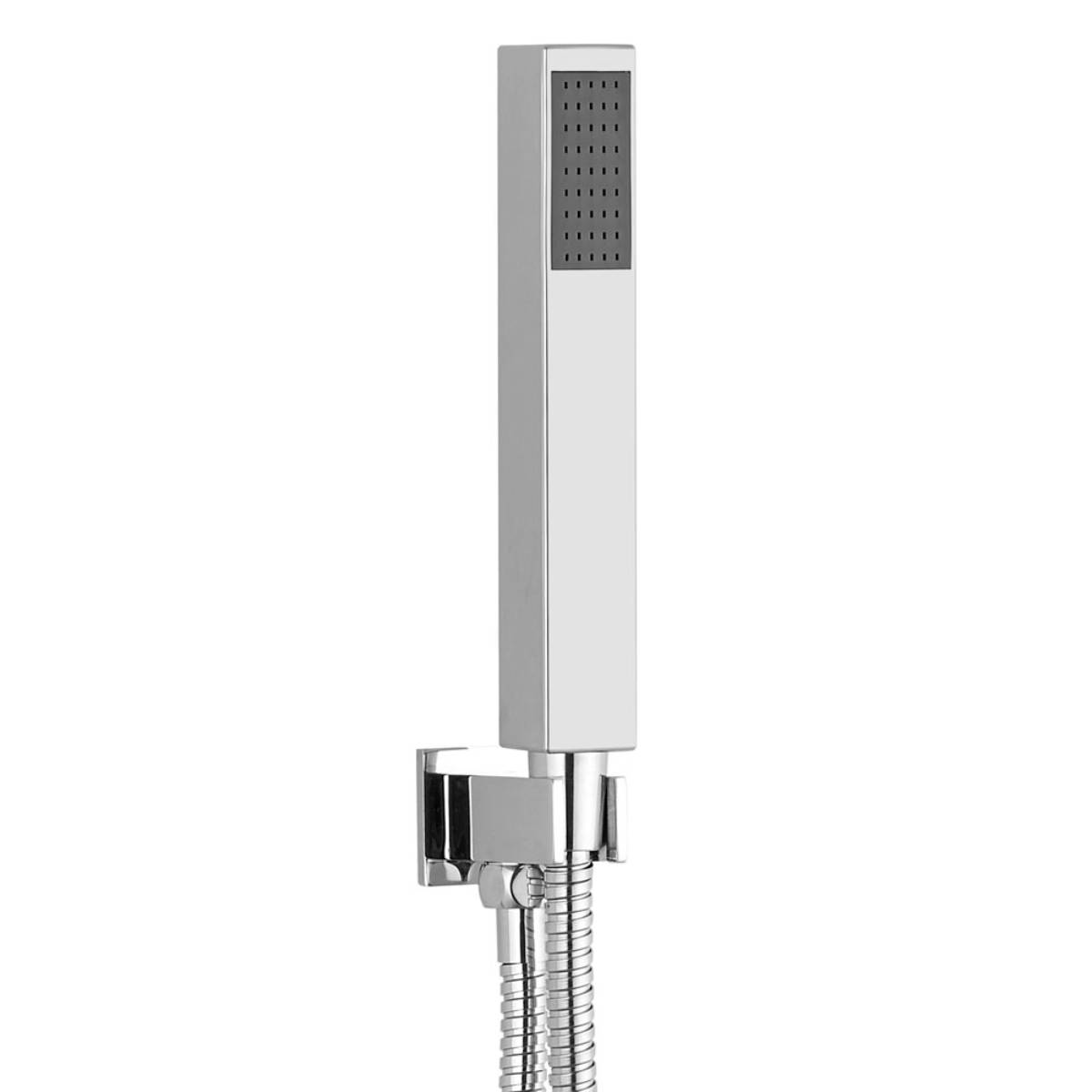

Square Shower Outlet, Hose and Head (6551)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes
